led video screen Features:
1.Fast assembling.
2.Light weight slim design cabinet.
3.Haning stand design.
4.good advertising monitor for stage.
P3.91 HD led display panel advantages:
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect
3. High resolution: The most apparent features of the new generation of LED display
4. Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
5. High Brightness: 1800-3000 CD/m2, brightness automatically adjusted
6. High Quality: CE, RoHS, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
7. Long life span: Over100, 000hours, warranty from 2 to 5 years.
8. You need = We design: Provide Personal- Customized LED offer.
P3.91 led display specification:
| LED Lamp |
| Type | SMD1919 LED |
| Brand | Epistar |
| Arrangement | 1R1G1B |
| Chip parameters | Red (620-625nm) IV:(250-300mcd ) |
| Chip parameters | Green (520-525nm) IV:(450-550mcd) |
| Chip parameters | Blue (470-475nm) IV:(100-120mcd) |
| LED Module |
| Pixel Pitch | 3.91mm |
| Module Size | 250×250mm |
| Module Resolution | 64×64=4096(Dots) |
| Module Weight | 0.55kg |
| LED Cabinet |
| Pixel Density | 65410 Dots/sqm |
| Frame Frequency | no less than 60 frame/sec |
| Cabinet Resolution | 128×256=32768(Dots) |
| Input Voltage | AC110-220V±10%, 50/60Hz |
| Cabinet Dimension(W*H*D) | 500×500×95mm |
| Output Voltage | DC-5V, 40A/60A/80A |
| Module Quanty /Cabinet | 2×4=8(Pcs) |
| Color Grayscale | 16bit |
| Gray Scale per Color | 65536 level |
| Cabinets Material | Aluminum-magnesium alloy Cabinet |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Cabinet Weight | 10kg |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically
optional |
| Brightness | >5000cd/sqm |
| MTBF( mean time between failures) | 5000 hours |
| Viewing Angle | 140(Horizontal), 140(Vertical) |
| Life-span | 100, 000 hours |
| Nearest Viewing Distance | 7m |
| Protection Level(front/back) | IP65 |
| Power Consumption (Max) | 1000w/sqm |
| Malfunction Dot Rate | less than 0.0001 |
| Power Consumption (Average) | 300 w/sqm |
| Working Temperature | -15oC-50oC |
| Display Function | Text, Graphics, Video |
| Humidity | 15%-85% |
| Refresh Rate | >1800Hz |
| Drive Mode/Driver Position | Constant driving 1/16 Scan, Combined diver board |
| Control System |
| Control Mode | Synchronization/Asynchronization |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| PC Operating System | Microsoft Windows 10 ,Windows 7 and XP |
| Software | LED Studio ( FWS-linsn ) |
| Communication Type | Net cable; 3G, WIFI(Sold separately) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian,
Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek,
Bulgarian, Romanian, Arabic,Korean,German |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |
| Control Card Input | DVI, USB; RJ45, HDMI(Sold separately) |
P3.91 rental stage led display FAQ:
1. May I know the Minimum order for your products?
For our products, no limit for the size of the screen, but
generally speaking, one screen the dots more than 50000 dots will
be clear for the audience to see the video on the screen.
2. What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in
1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led
chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens,it reduced grainy of
the screen, and improve the uniform of the screen, this will make
the screen have a more wide viewing angle and smooth image. With
the technology advanced and SMD brightness improved, SMD is more
and more used outdoor.
3. How long can I get the cargos?
Our production time is about 10-25 working days.
When we confirmed the order, we can start production after
receiving your deposit (40% TT in advance).
we will update the production details in time.
we will notice you before finish and after delivery the goods to
you after we get full payment.
About the time from start port to destination, it depends on the
distance and the state of the forwarder.
4. May I know the package details?
For fixed installation, we use veneer case, usually 4 cabinets in 1
veneer case;
For rental market, we suggest you use flight case, generally 8
cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
5. Besides this product, may I have other options?
Yes, my dear friend. Many thanks for finish the details of this
product. If it is not what you're looking for, you can also choose
other items. we have HD indoor led display, full color for outdoor
and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die
Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm.
We also have LED advertising player and kinds of video processor.

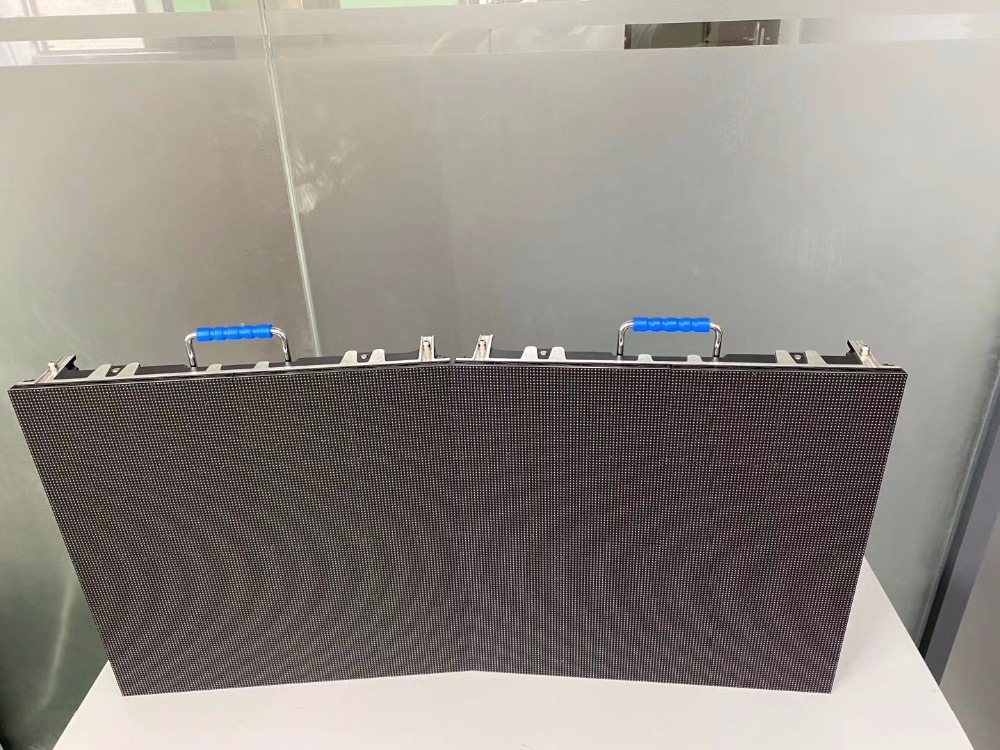

P3.91 led video wall 500x500mm cabinet:
P3.91 led display wall 500X1000mm cabinets:
