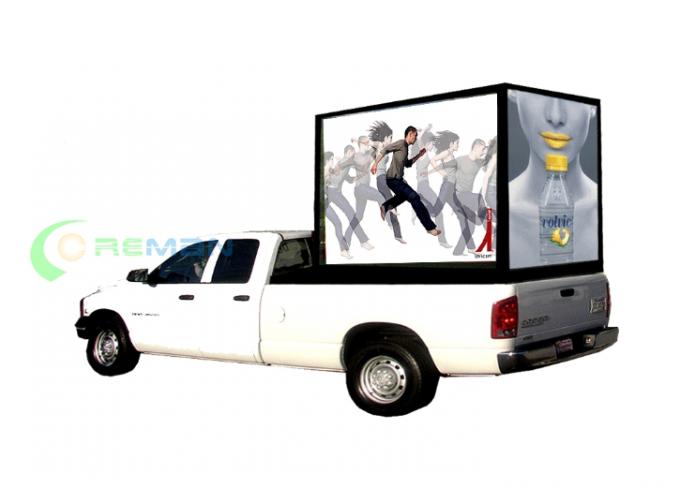

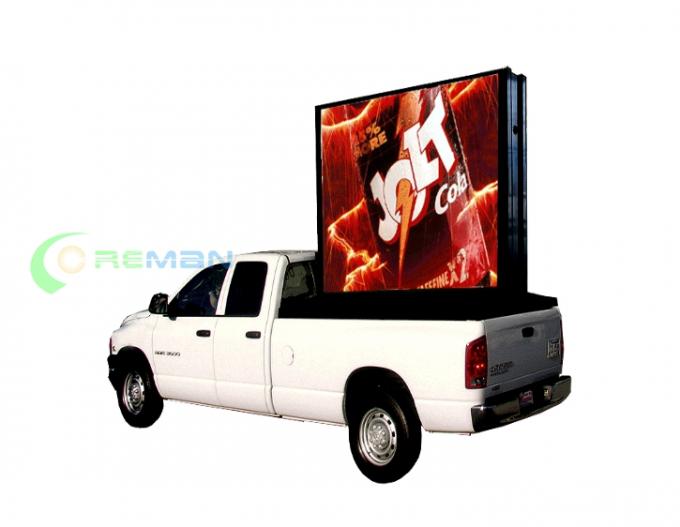

truck van vehicle mobile led display advertising video led display
Mobile Led Screen Quick Details:
1, Pixel Pitch: 4mm.5mm, 6.67mm 8mm 10mm.
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: Customized, cabinet weight:40kg/Sqm.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 5-7m.
P10 outdoor truck video led wall features:
Mainly for outdoor advertising, information publishing, journalism
and communication in some places, such as cultural square, traffic
arteries, stations, terminals, information centers, entertainment
venues, shopping, centers, commercial city and etc.
1. High brightness SMD3535 LED is used for outdoor LED display,
keeps the display content visible even if facing the strong
sunshine directly.
2. With Anti-UV ray mask, the color of the mask would never change
even if under exposure of UV ray.
3. Weatherproof design, completely outdoor use.
4. Easy for assembling and connection with the connector added.
5. High color uniformity and clear image can bring you a vivid
audio visual effect.
6. Rear access are available.
7. The LED Chips that we use have the advantages of large viewing
angle, low power consumption and good color uniformity.
8. Use the same level of red, green and blue LED chips, which makes
the image display of whole LED display more excellent and uniform.
9. The maintenance of pixel and single LED has been realized.
10. Good quality raw material, accurate technique and careful
inspection insures the high quality of LED display.
11. Relatively low cost (factory)
12. Stable capability
13. High brightness, high definition of displaying image.
14. Easy installment and low maintenance cost
15. Cabinet size double fan design, speed up internal air
circulation, auxiliary heat make the screen more stable and
reliable.

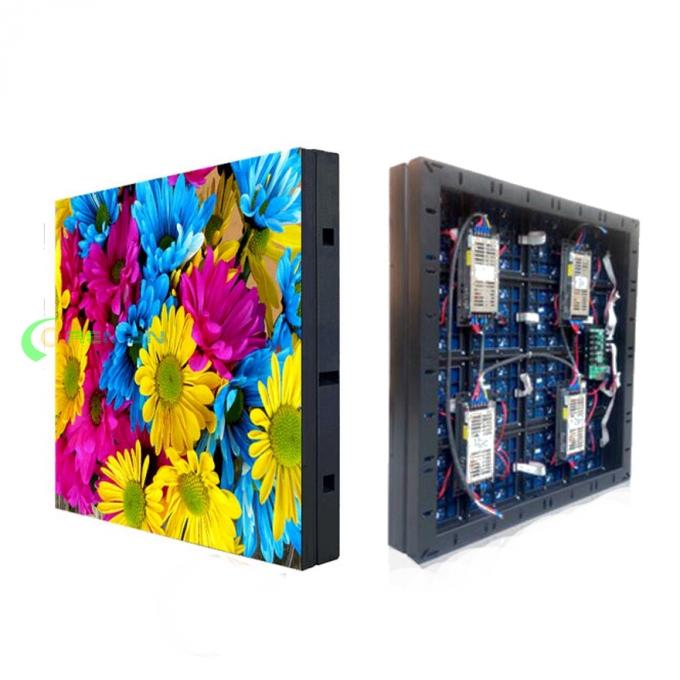

P10 truck led display cabinet specification:
| 1 | Pixel Pitch | 10mm | ||||||
| 2 | Pixel Configuration | 1R1G1B | ||||||
| 3 | Module Resolution | 32 x 16 pixels | ||||||
| 4 | Module Pixles | 512 pixels | ||||||
| 5 | Module Size | 320mm X 160mm | ||||||
| Cabinet Specification | ||||||||
| 1 | Cabinet Size(W X H X D) | 960mm x 960mm x 120mm | ||||||
| 2 | Cabinet Resolution(dot) | 96 x 96 pixels | ||||||
| 3 | Module Quanity (pcs) | 18 pcs | ||||||
| 4 | Cabinet Pixels | 9216 pixels | ||||||
| 5 | Pixel Density | 10000 pixels/m2 | ||||||
| 6 | Cabinet Materials | Iron | ||||||
| 7 | Cabinet Weight | 38kg per cabinet | ||||||
| 8 | Packaging | Wooden case | ||||||
| 9 | Wooden Case Size | 105*45*115CM ( one case for two cabinets )/ 102kg | ||||||
| Whole Screen Specification | ||||||||
| 1 | Screen Brightness | ≥6500cd/m2 | ||||||
| 2 | Driving Method | 1/2 scan | ||||||
| 3 | Best Viewing Distance | 10m - 150m | ||||||
| 4 | Max. Power Consumption | 600W/m2 | ||||||
| 5 | Average Power Consumption | 180W/m2 | ||||||
| 6 | Gray Level | 65536 levels(16 bit) | ||||||
| 7 | Display Color | 16.7M | ||||||
| 8 | Frame Frequency | ≥60Hz | ||||||
| 9 | Refresh Frequency | ≥1920Hz | ||||||
| 10 | Uninterrupted Working Hours | ≥72 hours | ||||||
| 11 | Screen Life-span | ≥100,000 hours | ||||||
| 12 | MTBF | ≥5,000 hours | ||||||
| 13 | Discrete Blind Spot Rate | <1/10000 | ||||||
| 14 | Continuous Blind Spot Rate | None | ||||||
| 15 | Blind Spot Rate | <1/10000 | ||||||
| 16 | Protective Scale | For Outdoor use only | ||||||
| 17 | Screen Plainness | <±1mm | ||||||
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz | ||||||
| 19 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius | ||||||
| Humidity:10%~90% RH | ||||||||
| 20 | Control Mode | Synchronous display with control PC by DVI | ||||||
| 21 | Control System | Linsn, Novastar or as you required. | ||||||
| 22 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. | ||||||
| 23 | Interface | Standard Ethernet | ||||||
| 24 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m | ||||||
| 25 | Certificate | CE, ROHS, FCC | ||||||
FAQ:
1. Are you trading company or manufacturer?
We are a professional led screen manufacturer located in Shenzhen
since 2009.
2. How to payment?
We accept the L/C, T/T, Paypal.

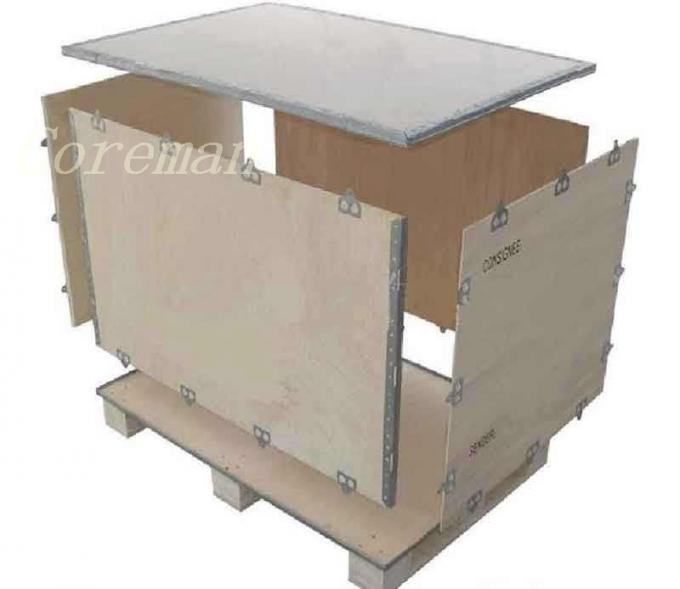

3. What is the packing method?
We usually use plywood case or flight case.
4. How about the delivery time?
We will ship within 15-25 working days after you placed the order,
but the specific delivered time will be affected by the shipping
company and shipping details.
5. Do you provide samples ? Is it free or extra?
We provide samples if you need, but the customers have to pay the
sample cost and the courier cost.
6. How do you ship the goods?
We usually ship by DHL, UPS, FedEx or TNT. In addition, Airline and
sea shipping also optional.
|
|
