Shenzhen Coreman Technology Co., Limited
8 Years
| Ask Lasest Price | |
| Brand Name : | COREMAN |
| Model Number : | CM-OS-P3.91-1/16S-500mm x 1000mm |
| Certification : | CE,Rohs, FCC, CCC, UL, CAS，SASO |
| Price : | 335~385USD/pcs |
| Payment Terms : | T/T, Western Union, MoneyGram, L/C |
| Supply Ability : | 50,000pcs/ month |
| Delivery Time : | 5-10 days |
Outdoor rental led video wall display p3.91 p4.81 p5.95 p6.25 rental led screen panel led cabinet
Feature :
6. Ultra-wide viewing angle give you the largest screen viewing area
7. Die-cast aluminum cabinet design light and easy to transport.
8. High refresh rate ,can reach 3840Hz to get better visual effect
9. Fast install and disassemble, has 4-8 pairs fast locks, can install the two cabiet with 20sec easily.
Specification:
| Pixel pitch | 3.91mm |
| Module size | 250mm*250mm |
| Resolution of module | 64*64 dots |
| LED Size | SMD1921 |
| Best viewing distance | ≥3m |
| Horizontal viewing angle | 140º |
| Viewing angle | 140º |
| Driving method | 1/16 scan |
| Brightness | ≥5000cd/m2 |
| Refresh rate | 1920Hz~3840Hz |
| IP grade | IP65~IP68 |
| Cabinet size | 500mm *1000mm* 75mm |
| Cabinet resolution | 128*256 dots |
| Gross weight | 14kg |
| Curve degree | —15°~15° |
| Max power consumption | 360W/pcs |
| Avg power consumption | 120W/pcs |
| Input voltage | AC110/220 ±10% |
| Storage temperature | —40°C~75°C |
| Working temperature | —30°C~65°C |
| MTBF | ≥10,000 hours |
| Life span | ≥100,000hours |
| Control system | Nova/Linsn/Colorlight etc |
| Specification might be slight different based on the components | |

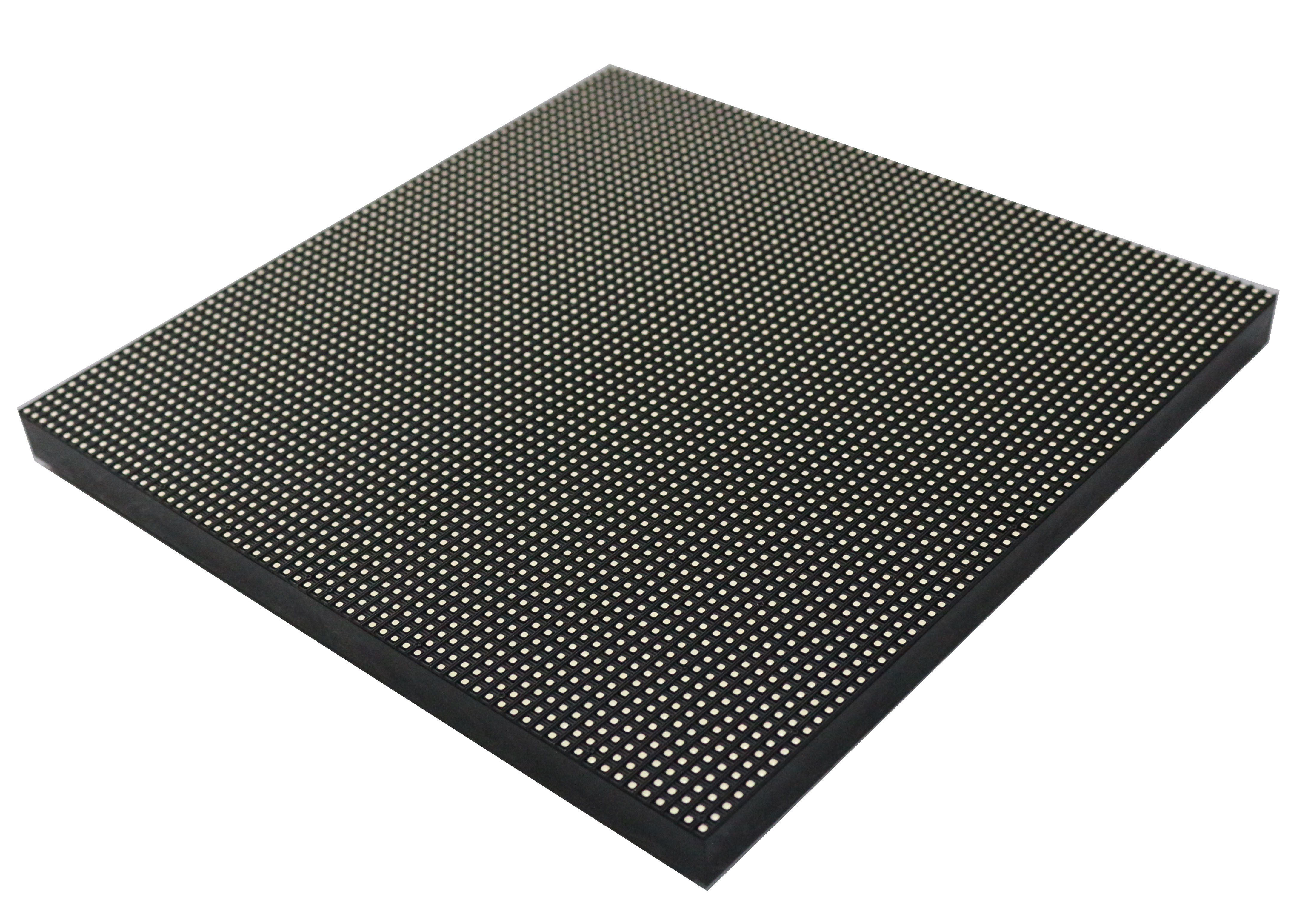

Detail picture of led module
LED module has different housing for choose, also has front access and rear access
Cabinet detail and feature
Cabinet can be front access or rear access, there are different
design for choose
Cabinet size : 500mm(W) x 500mm(H) or 500mm(W) x 1000mm(H)
Rental type cabinet can be used for rental and fixing type led display), but fixing type cabinet can't be used for rental type display.
1. High Strength Structure Die Casting Aluminum With High Accuracy, Lightweight and Seamless Installation with no Dark lines and Bright Lines.
2. Independent Modularization Control Box, Easy to assemble and disasseble, and it's very convenient to update the product like if you wanna change P3.91 to P2.97 just only remove the P3.91 module with P2.97 module.
3. Creative splicing as you wanna, Top-Top & Side-Side
Rental type display Installation : hanging type / standing on the floor
Connection diagram
(Video processor is not must, it depends on the size of the display)
Test and aging effect
Application:

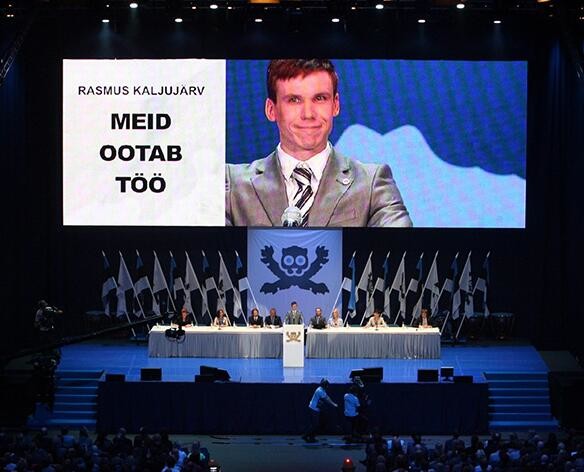

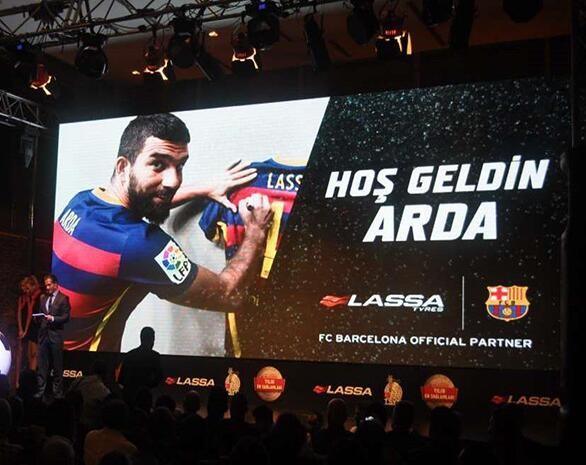

The led screen can be used as the indoor and outdoor stage LED display, dance floor, stadium LED display, sky backdrop curtain, fixing advertising LED display, showcase, Shopping center,stage , concert background, festival celebration , wedding, exhibition, meeting room, CCTV center ,airport , stadium games like football, basketball etc.etc. And it would be more convenient and fast .
1 . Warranty terms
(1) We provide warranty of all components for 24 months. During
this time, we replace or repair our goods for free if there is something wrong
with them,
(2) We can provide maintenance for a lifetime and charge for the
raw materials only.
(3) Can provide 3~7 years warranty according to customer request.
(4) can Send technical personnel to the scene in customers significant activities .
2. Technology Training and Maintenance
(1) We can provide the technology training for free, which contains
the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Documents and Certification
(1) We provide the operation manual, software, test report and so
on.
(2) We can also provide all kinds of certification such as CE,
RoHS,UL, CCC, FCC, CAS and so on.
