    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring

    Ask Lasest Price
    Brand Name : COREMAN
    Model Number : CM-OS-P4.81-1/13S-500mm x 500mm
    Certification : CE,Rohs, FCC, CCC, UL, CAS,SASO
    Price : 195~215USD/pcs
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 50,000pcs/ month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring


    Custom Mobile Led Video Wall Display Concave CE Rohs Approved Intelligent Monitoring


    Feature :


    1.Pushing, rotating, pulling, 3 installation steps, easy & convenient.
    2.supporting single cabinet disassembly from whole screen, high effective maintenance.
    3.Unit power box fast card technology, quickly handle problems from power & receiving card.
    4.Supporting curved screen, mini convex installation angle is 20°, max concave installation angle is 30°.
    5.Mixed splicing & connection for 500*500/500&1000mm, universal module.
    6.Cabinet with curve locks, can be adjust to curved or Concave.
    7.Die-casting alumium or magnesium alloy materials for the cabinet,make the led cabinet more slim and light



    Specification:

    Pixel pitch4.81mm
    Module size250mm*250mm
    Resolution of module52*52 dots
    LED SizeSMD1921/SMD2727
    Best viewing distance≥4m
    Horizontal viewing angle140º
    Viewing angle140º
    Driving method1/13 scan
    Brightness≥5000cd/m2
    Refresh rate1920Hz~3840Hz
    IP gradeIP65~IP68
    Cabinet size500mm *500mm* 75mm
    Cabinet resolution104*104dots
    Gross weight7kg
    Curve degree—15°~15°
    Max power consumption160W/pcs
    Avg power consumption53W/pcs
    Input voltageAC110/220 ±10%
    Storage temperature—40°C~75°C
    Working temperature—30°C~65°C
    MTBF≥10,000 hours
    Life span≥100,000hours
    Control systemNova/Linsn/Colorlight etc
    Specification might be slight different based on the components

    Detail picture of led module


    LED module has different housing for choose, also has front access and rear access


    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent MonitoringCustom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent MonitoringCustom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring
    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring

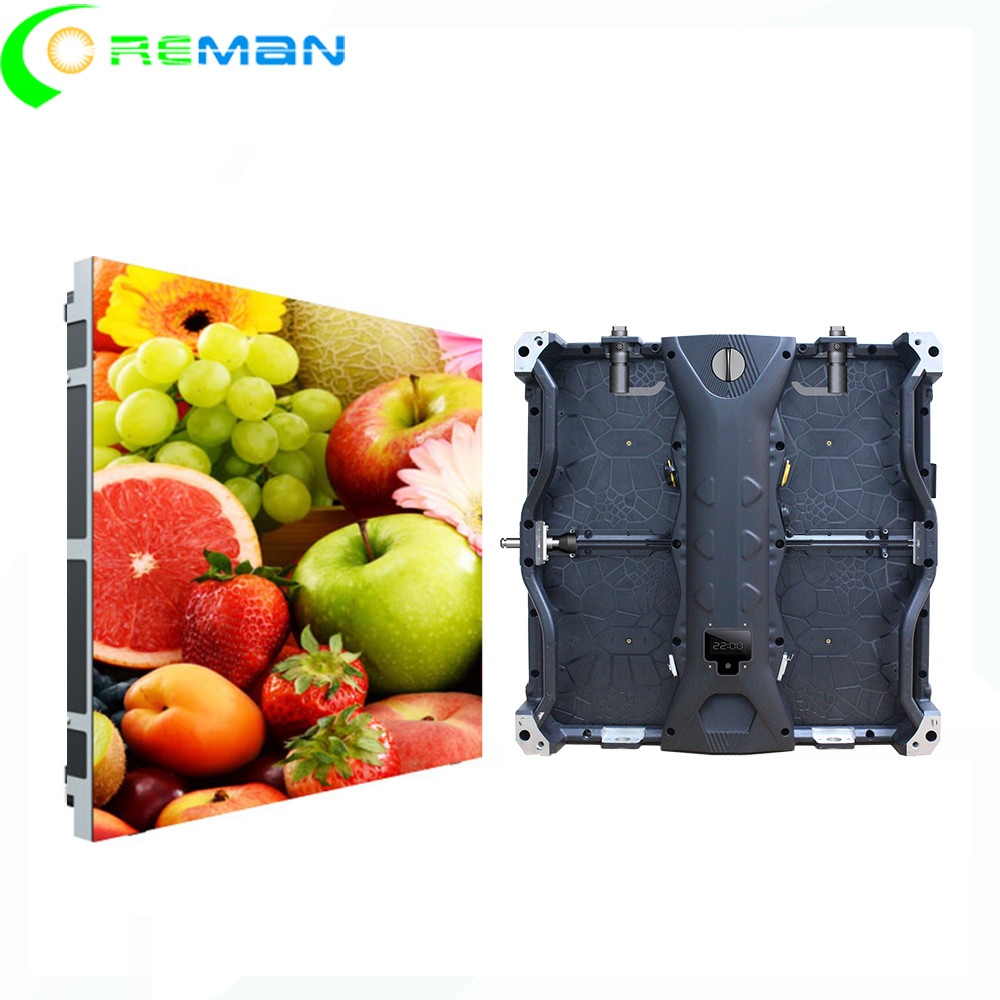

    Cabinet detail and feature

    Cabinet can be front access or rear access, there are different design for choose


    Cabinet size : 500mm(W) x 500mm(H) or 500mm(W) x 1000mm(H)


    Rental type cabinet can be used for rental and fixing type led display), but fixing type cabinet can't be used for rental type display.


    Ultra-light: lighter 40% than regular aluminum die-csting cabinet

    Super slim: high-strength,more slim than aluminum in the design,thiner around 30%

    Fast cooling: Excellent heat dissipation perormance to protet the modular circuit

    Anti-interference: special anti electromagnetic interference function

    High strength: support the weight of 300kg through tension test,more strength than aluminum

    Easy installation: installed by quick lock for 20s only

    High precision: seamless splicing though CNC machining

    High universality: can be processed according to module drawing,used for outdoor and indoor

    Easy maintenance: can be maintained form front side

    High cost-effective: large-scale production,complete production & supply chain


    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent MonitoringCustom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent MonitoringCustom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent MonitoringCustom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring

    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring


    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring


    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring

    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring


    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent MonitoringCustom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring


    Rental type display Installation : hanging type / standing on the floor





    Connection diagram


    (Video processor is not must, it depends on the size of the display)





    Test and aging effect


    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring

    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent MonitoringCustom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring

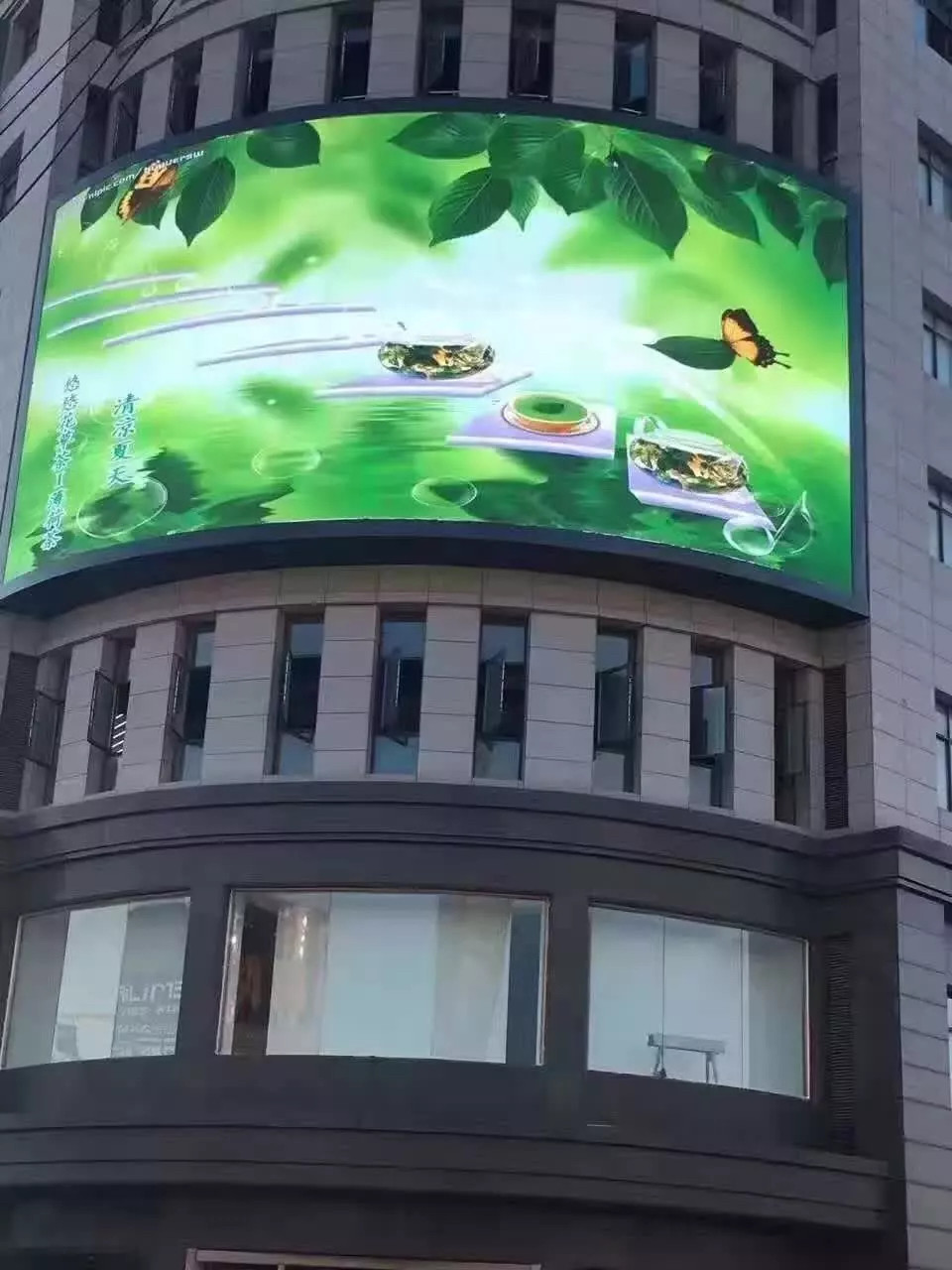

    Application:

    The led screen can be used as the indoor and outdoor stage LED display, dance floor, stadium LED display, sky backdrop curtain, fixing advertising LED display, showcase, Shopping center,stage , concert background, festival celebration , wedding, exhibition, meeting room, CCTV center ,airport , stadium games like football, basketball etc.etc. And it would be more convenient and fast .


    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring

    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring


    Custom Mobile LED Video Wall Display Concave CE Rohs Approved Intelligent Monitoring


    1 . Warranty terms


    (1) We provide warranty of all components for 24 months. During this time, we replace or repair our goods for free if there is something wrong with them,
    (2) We can provide maintenance for a lifetime and charge for the raw materials only.

    (3) Can provide 3~7 years warranty according to customer request.

    (4) can Send technical personnel to the scene in customers significant activities .


    2. Technology Training and Maintenance
    (1) We can provide the technology training for free, which contains the operation training and maintenance training in the factory.
    (2) We will send our engineers to your country by negotiation.


    3. Documents and Certification
    (1) We provide the operation manual, software, test report and so on.
    (2) We can also provide all kinds of certification such as CE, RoHS,UL, CCC, FCC, CAS and so on.
