| Brand Name : | COREMAN |
| Model Number : | CM-OS-P6-1/8S-192mm x 192mm |
| Certification : | CE,Rohs, FCC, CCC, UL, CAS，SASO |
| Price : | 9.8~12.8USD |
| Payment Terms : | T/T, Western Union, MoneyGram, L/C |
| Supply Ability : | 50,000pcs/ month |
| Delivery Time : | 5-10 days |
Product feature :
1) Big led chip with high brightness, it is widely used for middle,big size outdoor led display for advertising
2) Testin the led mdule under strict condition, the led display can be used in extream hot or cold weather
3) High adjustable brightness can meet the demands of the changing requirement of Customer in different environments.
4) No mosaic due to excellent flatness and nice uniformity of light-emitting.
5) Wide viewing angles and the horizontal angle can reach 140° , The images effect will not change largely in the range.
6) Good heat dissipation capability because of the unique design of vent fan (liking shutter).
Specification:
| Pixel pitch | 6mm | 6mm |
| Module size | 192mm*192mm | 192mm*192mm |
| Resolution of module | 32*32 dots | 32*32 dots |
| Density of pixel | 40,000 dots/m2 | 40,000 dots/m2 |
| LED Size | SMD2727/ SMD3535 | SMD3535 |
| Pixel configuration | 1R1G1B | 1R1G1B |
| Best viewing distance | ≥6m | ≥6m |
| Horizontal viewing angle | 140º | 140º |
| Viewing angle | 140º | 140º |
| Driving method | 1/8 scan | 1/4 scan |
| Brightness | ≥6500cd/m2 | ≥7500cd/m2 |
| Refresh rate | 1920Hz~3840Hz | 1920Hz~3840Hz |
| IP grade | IP65 | IP65 |
| Max power consumption | 30W/pcs | 50W/pcs |
| Avg power consumption | 10W/pcs | 16.7W/pcs |
| Input voltage | DC5V | DC5V |
| Storage temperature | —40°C~65°C | —40°C~65°C |
| Working temperature | —30°C~55°C | —30°C~55°C |
| MTBF | ≥10,000 hours | ≥10,000 hours |
| Life span | ≥100,000hours | ≥100,000hours |
| Control system | Nova/Linsn/Colorlight/DBstar etc | Nova/Linsn/Colorlight/DBstar etc |

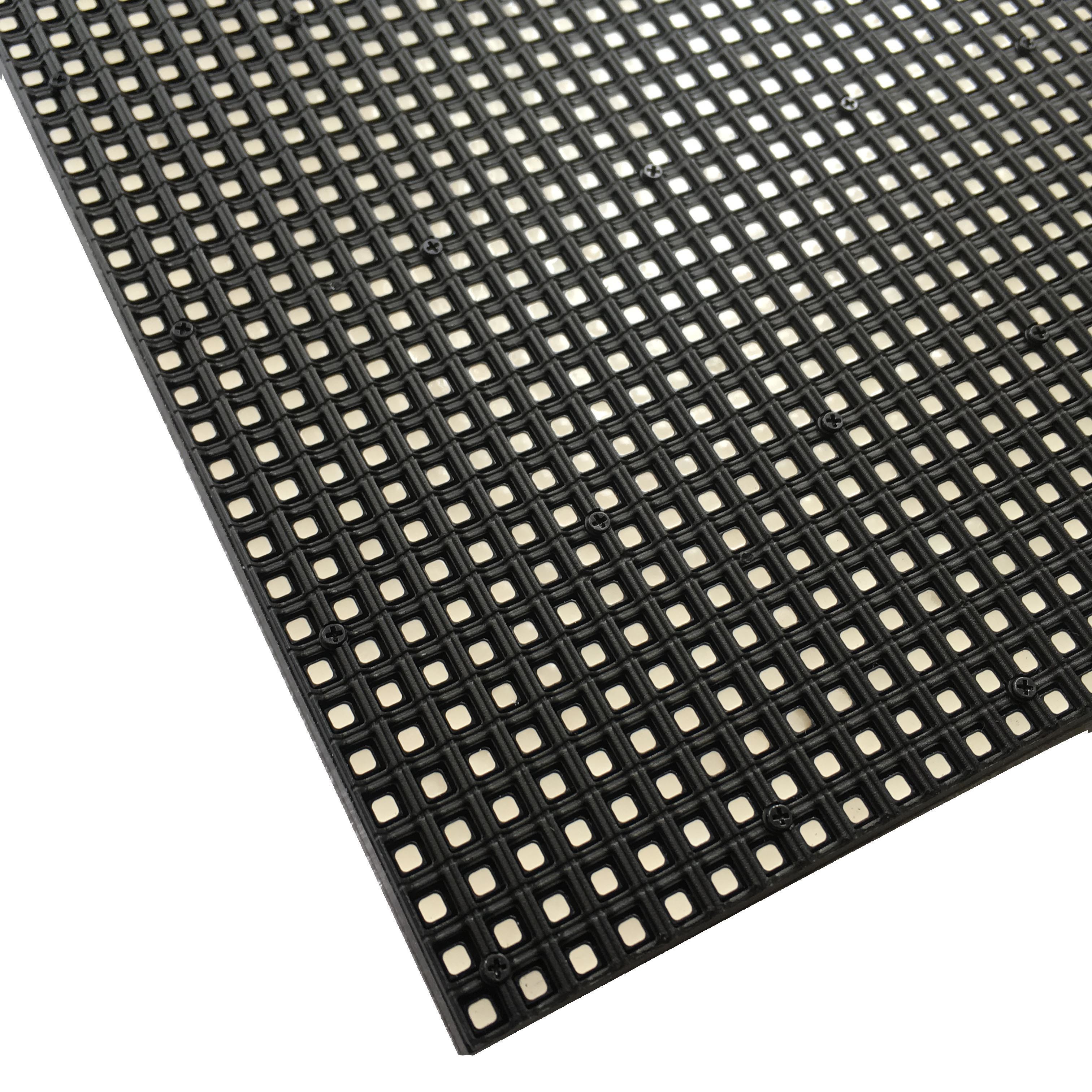

Detail picture of led module
P6-192mm x 192mm-32x32dots- 1/8S

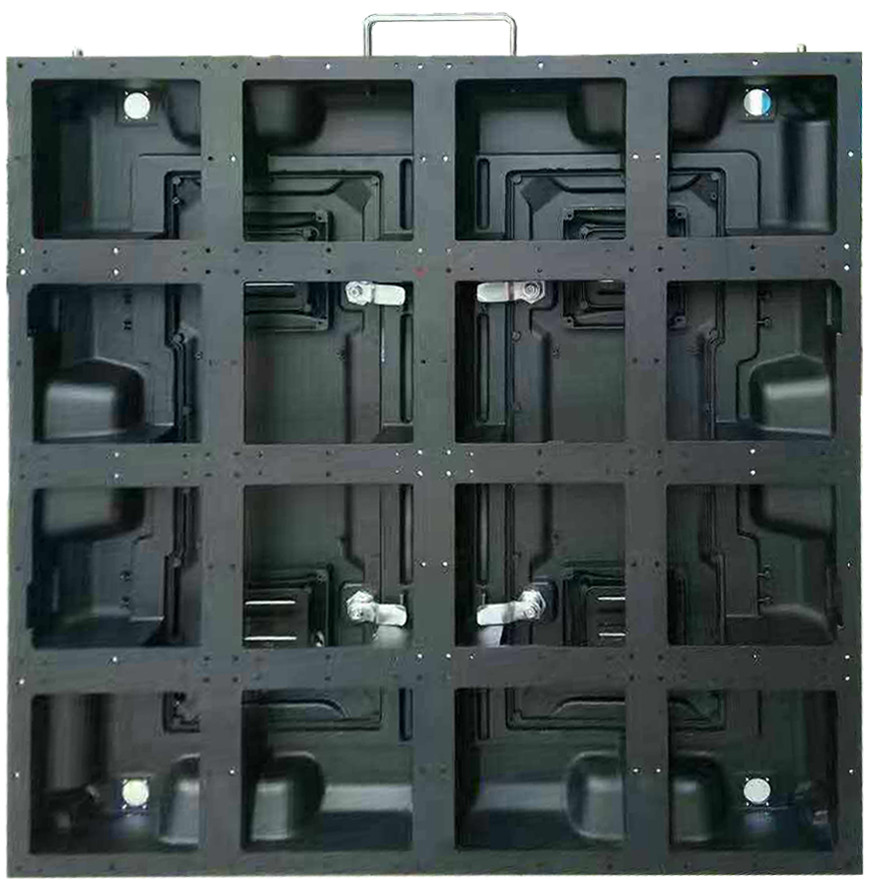

Cabinet detail and feature
Rental cabinet size : 576mm(W) x 576mm(H) ,768mm(W) x 768mm(H)
Fixing cabinet size : Customized , Standard size is 960mm(W) x 960mm (H)
Rental cabinet fature
Ultra-light, it is 40% of the regular steel cabinet, easy to carry and move
Super slim,thickenss is 60~75cm, the traditional cabinet thickness is 120cm
High strength: support the weight of 300kg through tension test.
Easy installation: installed by quick lock for 20s only
High precision: seamless splicing though CNC machining
High universality: can be processed according to module drawing,used for outdoor and indoor
Rental type cabinet can be used for rental and fixing type led display), but fixing type cabinet can't be used for rental type display.
576mm(W) x 576mm(H)
768mm(W) x 768mm(H)
Rental type display Installation : hanging type / standing on the floor
Fxing type led display
Connection diagram
(Video processor is not must, it depends on the size of the display)

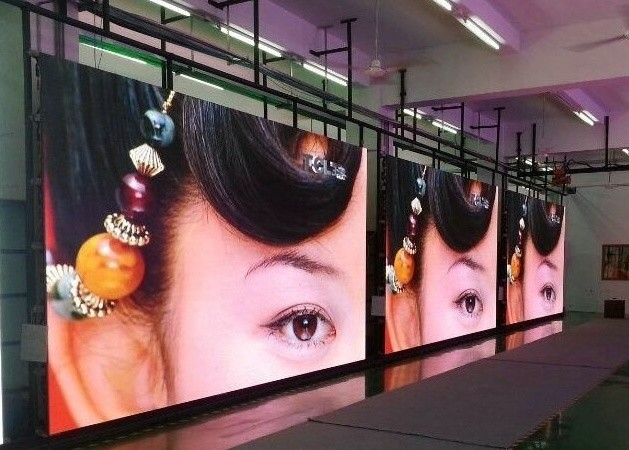

Test and aging effect

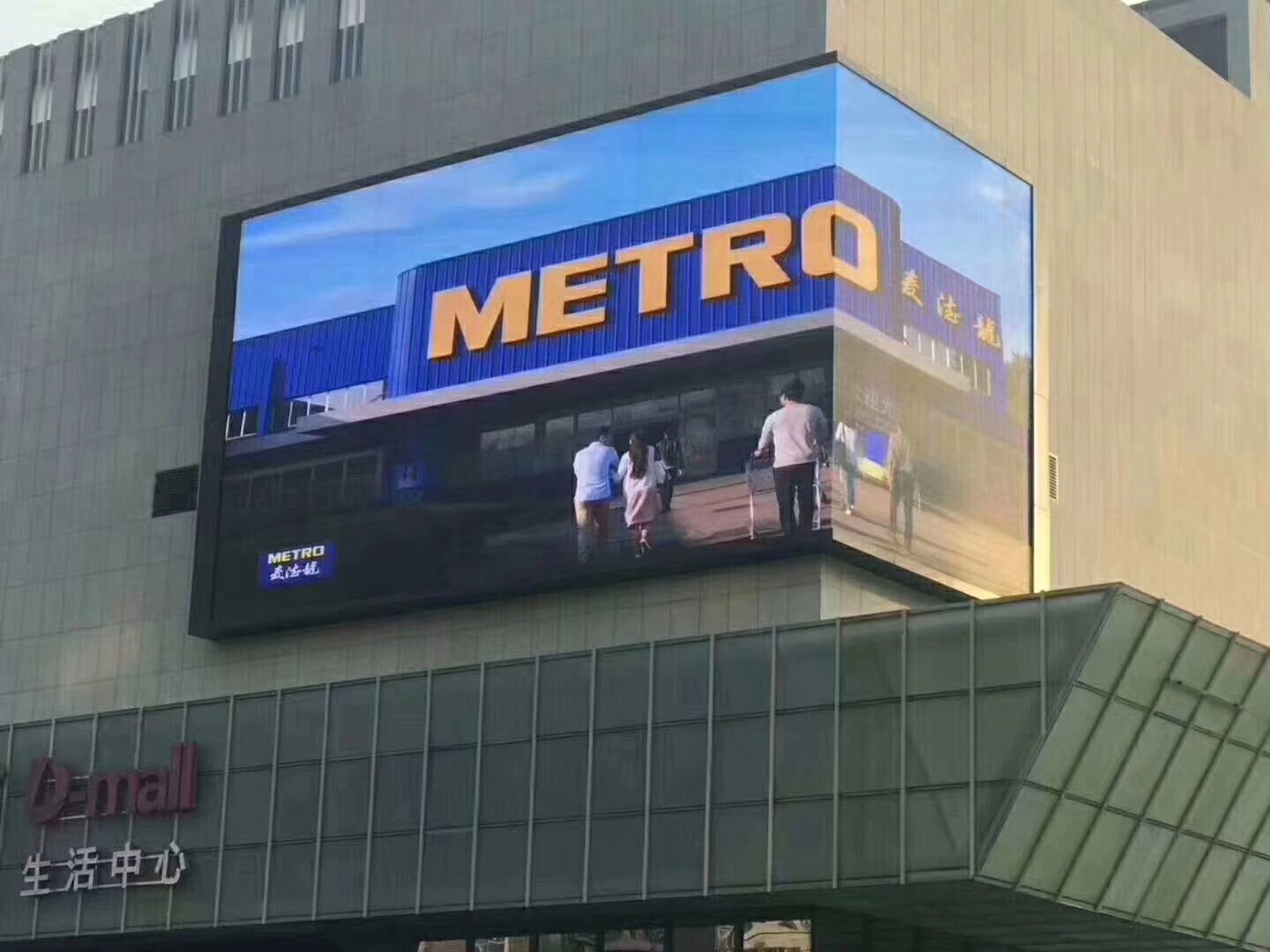

Application:
Shopping center,stage concert background, festival celebration ,
wedding, exhibition, meeting room, CCTV center airport etc
Our service
1) Can provide the installation draw and send the engineer to install the led display according to negotiation
2)Your inquiry related to our products or price will be replied in 24hrs
3)OEM&ODM,any your customized lightings we can help you to design and put into product
4)Distributoership are offered for your unique design and some our current models
5)Protection of your sales area,ideas of design and all your private information
6)Top Quality+Reasonable Price+Responsible After Service=Successful & Win
