| Brand Name : | coreman |
| Model Number : | P2.5 |
| Certification : | CE,ROHS FCC,ISO,UL |
| Price : | Negotiable，large qty ,better price |
| Payment Terms : | D/P, T/T, Western Union, MoneyGram, L/C /Paypal /Cash |
| Supply Ability : | 40000pcs per week |
| Delivery Time : | 5-9working days |

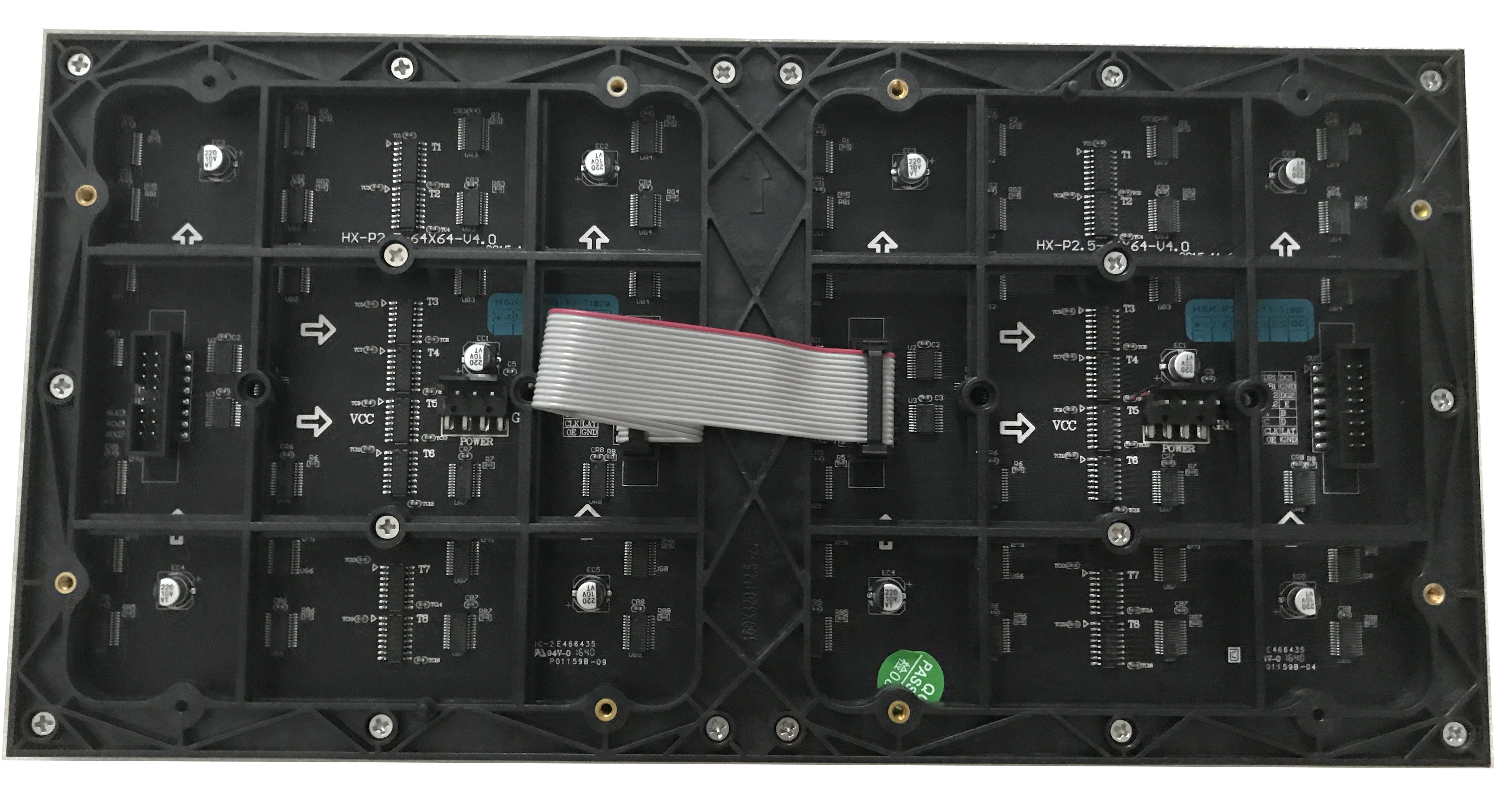

SMD full color 3in1 indoor rgb led matrix 64x64 P2.5 LED display module
Module Feature
| Pixel pitch | 2.5 mm | ||
| Module size (mm) | 160*80 | 160*160 | 160x320 |
| Resolution of module(dots) | 64*32 | 64*64 | 64x128 |
| Density of pixel | 1600,000 dots/m2 | ||
| LED Size | SMD2121 | ||
| Pixel configuration | 1R1G1B | ||
| Best viewing distance | ≥2m | ||
| Horizontal viewing angle | 140º | ||
| Viewing angle | 140º | ||
| Driving method | 1/32 scan | ||
| Brightness | ≥1500cd/m2 | ||
| Refresh rate | ≥1920Hz(Max 3840Hz) | ||
| IP grade | IP20 | ||
| Input voltage | AC110V/220V±10% | ||
| Storage temperature | —40°C~65°C | ||
| Working temperature | —20°C~55°C | ||
| MTBF | ≥10,000 hours | ||
| Life span | ≥100,000hours | ||
| Control system | Nova/Linsn/Colorlight/DBstar | ||
160x320mm
160x160mm
160x80mm
Workshop
Package
FAQ
yes, the size is customized,we'll make the size near yours .
The best aspect ratio of LED display are W16:H9 or W4:H3
We will provide drawing of steel structure or hanging truss,then
you can install led display very easy.
Please tell me indoor or outdoor do you need,size of led
display,where will be application of led display.
Normally, can be shipped by sea , by air and express .
You can transfer payment by Bank TT, West union, Paypal or Cash .
More details, pls feel free to contact us !!!
|
|
