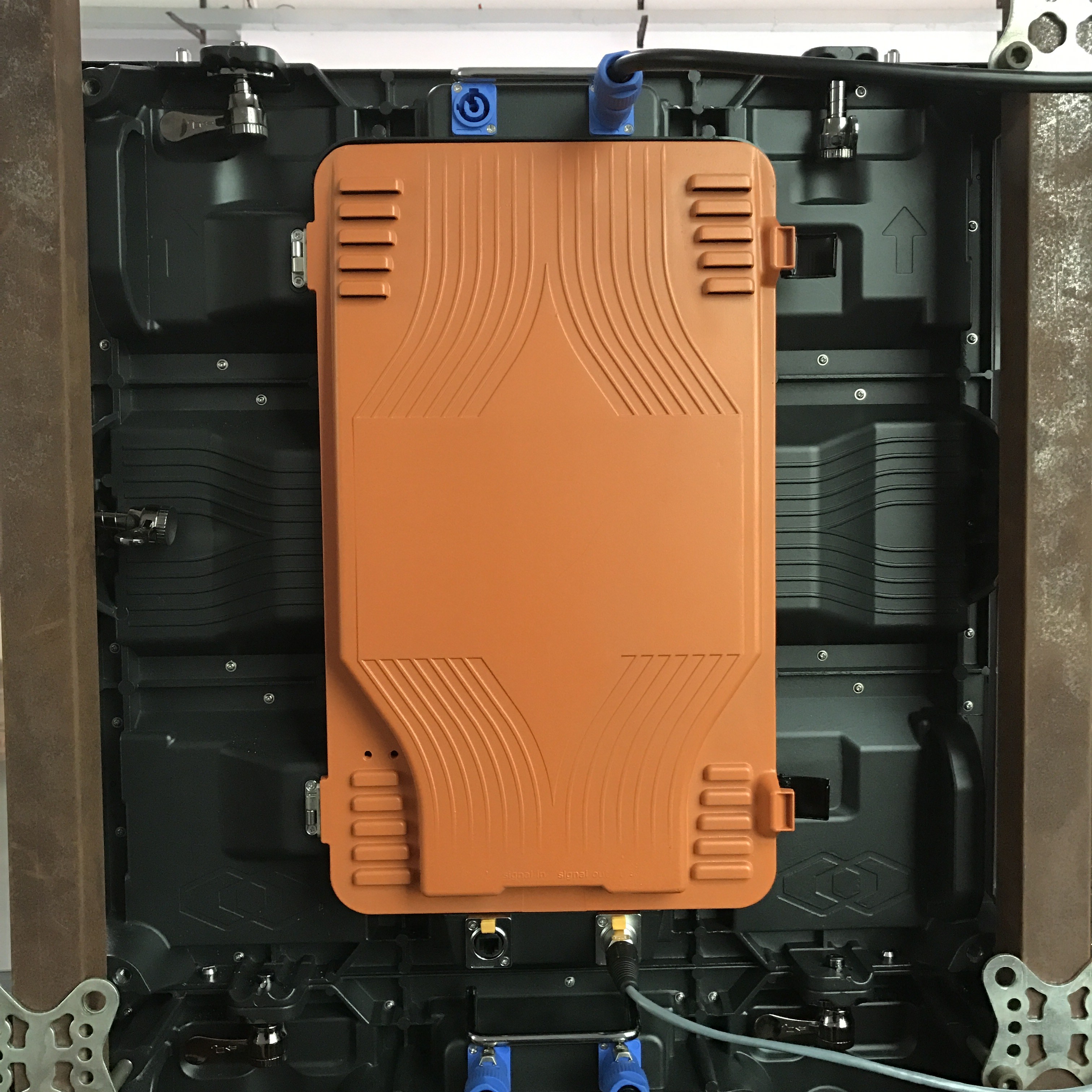

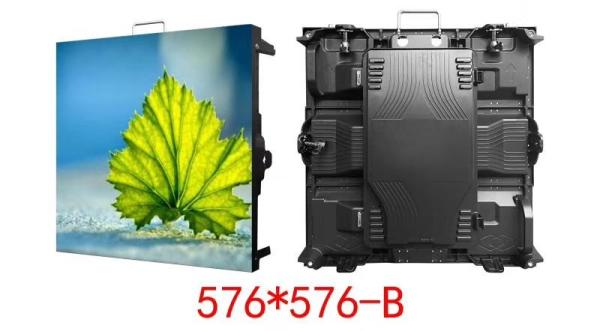

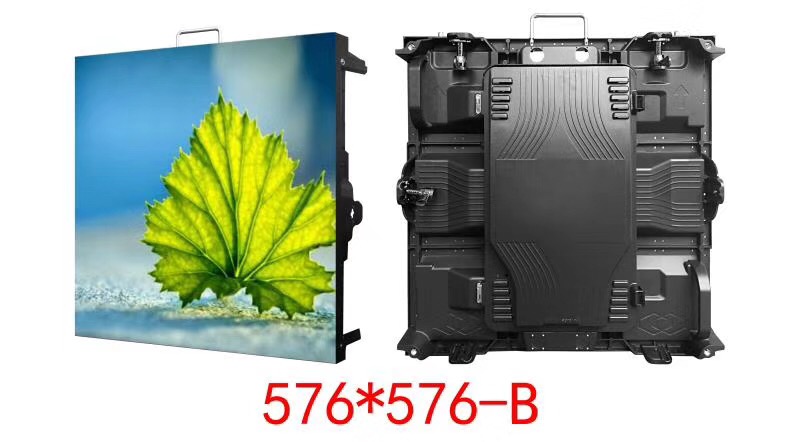

P3 led display cabinet 576x576mm with mask kinglight led chip
Feature
1. The whole screen can be seamless Mosaic,flatness,there will be no gap
2. High frequency refreshes,each color 625,000 grayscale modulation,making the image more delicate,about the point-by-point correction technology system,easy to operate.
3. Control power supply constant power chip,double capacitance high power.stable heat dissipation,long life,more urable.
4. Use national standard all copper power supply wire,anti-oxidation.anti-aging,waterproof,flame retardant,can be used for a long time without damage .
5. Using 6-pin copper bracket lamp beads,the current uniform brightness.long useful life,beautiful color without shad.
6. Use angle extension technology to ensure the image is not distorted and the color is not distorted.
| Parameter name | Product parameter | |
| Module | Pixel structure | SMD2121 3in1 LED |
| Pixel pitch | 3mm | |
| Module resolution | 64W*64H | |
| Module size | 192mm(W)×192mm(H) | |
| Module weight | 0.3KG | |
| Module maximum power consumption | 25W | |
| Cabinet | Cabinet module composition | 3W*3H |
| Cabinet resolution | 192W*192H | |
| Cabinet size | 576*576mm | |
| Cabinet pixel density | 111111dots/m2 | |
| Cabinet flatness | ≤0.2mm | |
| Maintenance mode | back maintenance | |
| Cabinet formation | Die-cast aluminum | |
| Optical parameters | White balance brightness(nits) | ≥1000,Color temperature,6500K |
| Color temperature | 3200—9300K (Adjustable) | |
| Viewing angle | Horizontal:160° | |
| Vertical:160° | ||
| Glow point deviation | <3% | |
| Brightness /Chroma uniformity | ≥97% | |
| Contrast | 4000:01:00 | |
| Electrical parameters | Peak power consumption | Cabinet: 220W/Cabinet |
| One square:600W/m2 | ||
| Average power consumption | Cabinet: 60W/Cabinet | |
| One square: 420 W/m2 | ||
| Processing performance | Frame rate | 50&60Hz |
| Drive mode | Constant current driver,32scan | |
| Gray level | 16384 | |
| Refresh rate | ≥2000Hz | |
| Color processing bits | 16 bit | |
| Use parameters | Life span | 50,000H |
| Operating temperature / humidity range | -10 – 40℃/RH / 10%-80%RH No condensation | |
| Storage temperature / humidity range | -20 – 60℃/RH / 10%-85%RH No condensation | |
Workshop
Package
Pre-sales Service
1. Customer Training
We provide free training of LED system operation and maintenance. Our purpose is to make clients be able to operate LED system and find solutions to some simple technical problems. We can train 2-3 people for our clients.
2. Basic Training
Three days workshop training of some basic skills of LED Screen System.
1) PC Basic Knowledge
2) Windows Operation System
3) LED Displays Working Principle
4) General System Problems
5) System Daily Maintenance & Safety
3. Site Training
Three days on-site training on purpose to get the Clients to know how to operate the LED screen system, how to deal with general problems. And how to install hardware and software.
1) Software Installation
2) LED Screen Daily Maintenance
3) Software Problem Treatment
Post-sales Service
1. Warranty
1) We provide warranty of all components for 2 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the operation training and maintenance
2) Training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so on.
2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
FAQ
yes, the size is customized,we'll make the size near yours .
The best aspect ratio of LED display are W16:H9 or W4:H3
We will provide drawing of steel structure or hanging truss,then
you can install led display very easy.
Please tell me indoor or outdoor do you need,size of led
display,where will be application of led display.
Normally, can be shipped by sea , by air and express .
You can transfer payment by Bank TT, West union, Paypal or Cash .
