| Brand Name : | COREMAN |
| Model Number : | CM-OS-P8-1/5S-320mm x 160mm |
| Certification : | CE,Rohs, FCC, CCC, UL, CAS，SASO |
| Price : | 10.5~12.8USD |
| Payment Terms : | T/T, Western Union, MoneyGram, L/C |
| Supply Ability : | 50,000pcs/ month |
| Delivery Time : | 5-10 days |
Product feature :
1) IP65 high waterproof standard and Anti-UV design
2) Standard size 320mm x 160mm led module, can adapt to 640x640 and 960x960 led cabinet
3) High refresh rate and uniform color , have good visual effect
4) Brightness adjustable automatically to avoid light pollution
5) Front and access are available
Specification:
| Pixel pitch | 8mm | 8mm |
| Module size | 256mm*128mm | 320mm*160mm |
| Resolution of module | 32*16 dots | 40*20dots |
| Density of pixel | 15,625 dots/m2 | 15,625 dots/m2 |
| LED Size | SMD3535 | SMD3535 |
| Pixel configuration | 1R1G1B | 1R1G1B |
| Best viewing distance | ≥8m | ≥8m |
| Horizontal viewing angle | 140º | 140º |
| Viewing angle | 140º | 140º |
| Driving method | 1/4 scan | 1/5 scan |
| Brightness | ≥7000cd/m2 | ≥5500cd/m2 |
| Refresh rate | 1920Hz~3840Hz | 1920Hz~3840Hz |
| IP grade | IP65 | IP65 |
| Max power consumption | 35W/pcs | 40W/pcs |
| Avg power consumption | 11.7W/pcs | 13.3W/pcs |
| Input voltage | DC5V | DC5V |
| Storage temperature | —40°C~65°C | —40°C~65°C |
| Working temperature | —30°C~55°C | —30°C~55°C |
| MTBF | ≥10,000 hours | ≥10,000 hours |
| Life span | ≥100,000hours | ≥100,000hours |
| Control system | Nova/Linsn/Colorlight/DBstar etc | Nova/Linsn/Colorlight/DBstar etc |
| Specification might be slightly different based on different components | ||

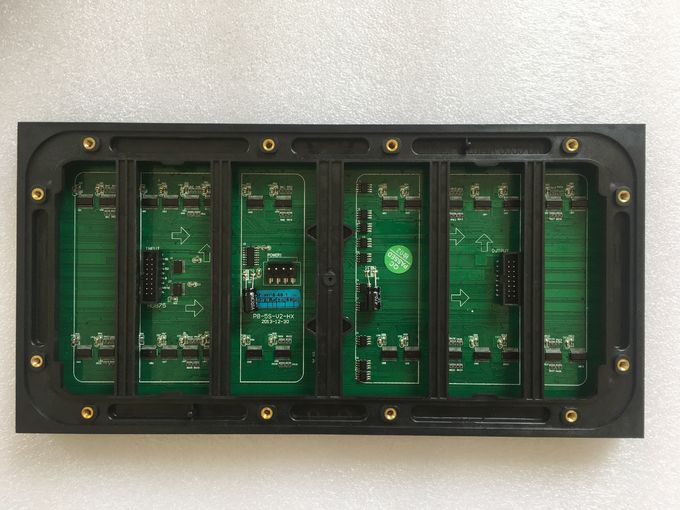

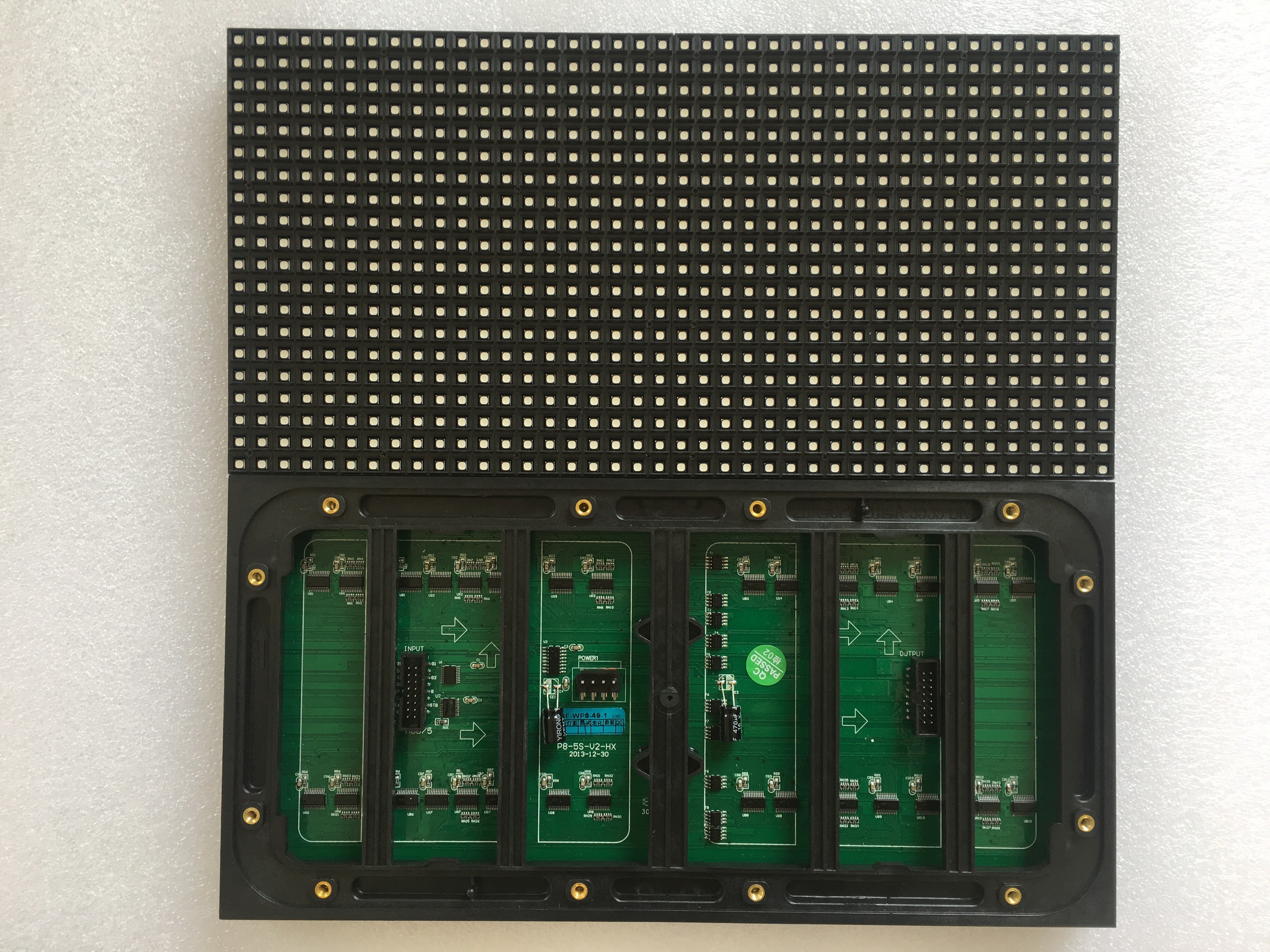

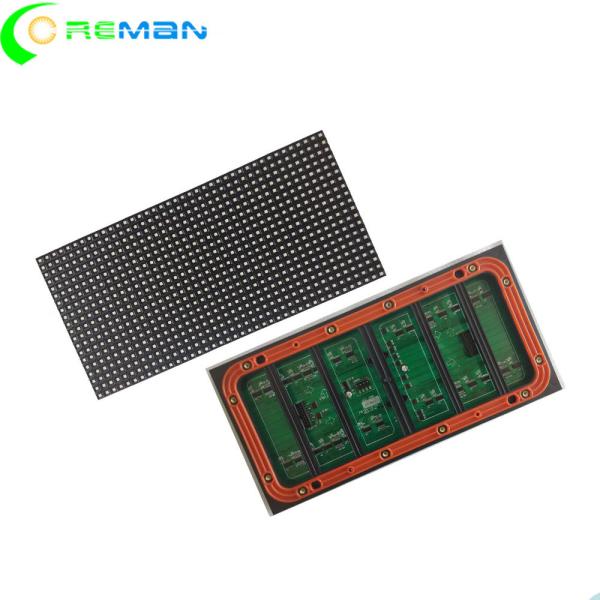

Detail picture of led module
P8-320mm x 160mm -40x20 dots-1/5S
Cabinet detail and feature
Rental cabinet size : 640mm(W) x640mm(H) ,960mm(W) x 960mm(H)
Fixing cabinet size : Customized , Standard size is 960mm(W) x 960mm (H)
Rental cabinet fature
Ultra-light, it is 40% of the regular steel cabinet, easy to carry and move
Super slim,thickenss is 60~75cm, the traditional cabinet thickness is 120cm
High strength: support the weight of 300kg through tension test.
Easy installation: installed by quick lock for 20s only
High precision: seamless splicing though CNC machining
High universality: can be processed according to module drawing,used for outdoor and indoor
Rental type cabinet can be used for rental and fixing type led display), but fixing type cabinet can't be used for rental type display.
640mm(W) x 640mm(H)
960mm(W) x 960mm(H)
Rental type display Installation : hanging type / standing on the floor
Fxing type led display
Connection diagram
(Video processor is not must, it depends on the size of the display)

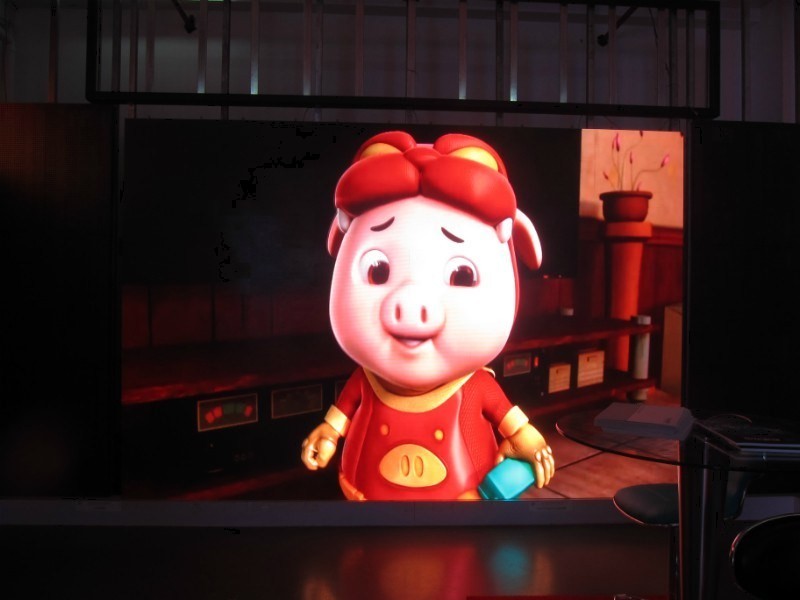

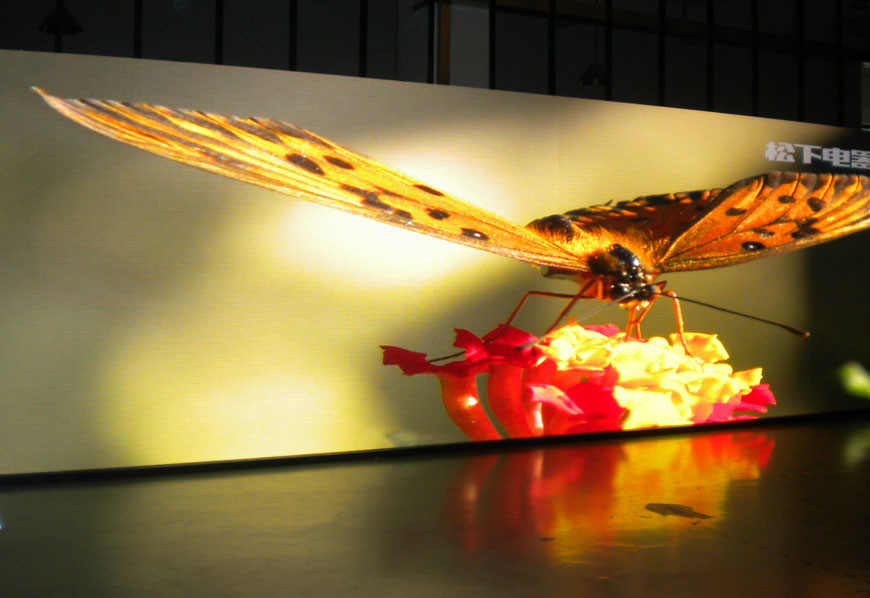

Test and aging effect
Application:
Shopping center,stage concert background, festival celebration ,
wedding, exhibition, meeting room, CCTV center airport etc
