| Brand Name : | Coreman |
| Model Number : | CM-SPC-FS |
| Certification : | CE,ROHS,SGS,FCC |
| Price : | 300-1220USD per sqm |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability : | 5000sqm per month |
| Delivery Time : | 3-12days |

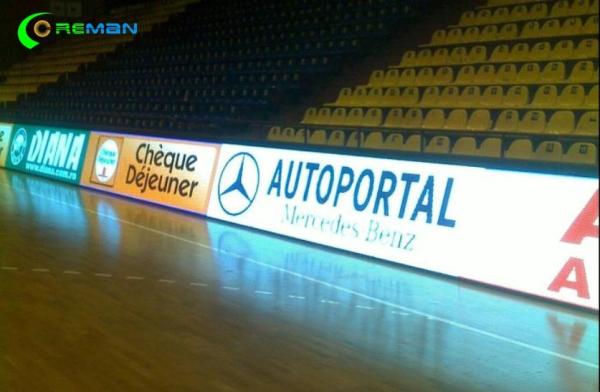

perimeter advertising led display multi use scoreboard sign outdoor indoor 7000 RGB kinglight video led screen
Perimeter LED Display Description:
The LED module is made with high quality Epistar leds keep high
quality, low lighting decay, energy saving
Brightness of led display can be adjusted automatically according
to different surrondings,
can be set to open and close the screen on fixed automatically
LED Display can be fixed on the wall, on the street, on top of
building
,or be hung for rental to meet the request of live broadcast, live meeting,
banquet, party, etc, to display the content what you want, by video, graphics,
antimation etc, connect with PC computer or network, also can remoto control
with asynchronous system.
We are middle-sized Chinese local factory, total 5 floors.
The first floor is for display testing room.
The second floor is SMT machine room.
The Third floor is for indoor led module
The Forth floor is for outdoor led module.
The fifth floor is for office
Besides, we control our cost very well and don't have huge management
cost like top companies,
so that we can give the real benefits to our customers.
| Item | Outdoor stadium led display series | ||||
| Pixel Pitch:5 | 4mm | 5mm | 6mm | 8mm | 10mm |
| Driving Method : | 1/6 | 1/4 | 1/4 | 1/2 | 1/2 |
| LED type : | SMD3535 | DIP5454 | SMD3535 | DIP5454 | SMD3535 |
| Brightness: | ≥5500cd/m 2 | ||||
| Pixel density : | 22545pix/m 2 | 15625pix/m 2 | 15625pix/m 2 | 10000pix/m 2 | 10000pix/m 2 |
| Viewing angle: | 140°H and 120°v | ||||
| Module Size(W*H): | 320*160mm/256X128/192X192mm | ||||
| Cabinet Size(W*H): | 640*640*50mm/960X960mm | ||||
| Cabinet weight: | 14.5kg/38KG | ||||
| Cabinet Material: | Aluminum Die-casting/fixed led cabinet | ||||
| Avarage Power Consumption: | 200 W/m 2 | 390 W/m 2 | 390 W/m 2 | 520 W/m 2 | 500 W/m 2 |
| Max Consumption : | 600 W/m 2 | 980W/m 2 | 980W/m | 1250 W/m 2 | 1250 W/m 2 |
| Refresh rate: | ≥1400HZ | ||||
| Color Depth: | 14bit | ||||
| voltage : | 200-240V | ||||
| IP Rrating: | IP65(Front)/65(Rear) | ||||
| Operating temperature : | -20-60 degree | ||||
| Storage temperature: | -40-70 degree | ||||
| Operation humidity: | 10-90% | ||||
| Storage humidity: | 10-90% | ||||
| Life span (hrs): | ≥50000 | ||||
| MTBF (hrs) : | ≥3500 | ||||
| Control system: | Linsn/Nova | ||||
| Compliant standard: | N/A | CE-EMC | CCC,CE,TUV,RoHS | ||
1.The popular design for 960X960mm indoor and outdoor aluminium die casting stadium
perimeter led cabinet:
2. The normal design cabinet for 768X768,960x960,1024x1024mm steel
aluminium DIP SMD
stadium perimeter led cabinet:
|
