Shenzhen Coreman Technology Co., Limited
8 Years
| Ask Lasest Price | |
| Brand Name : | coreman |
| Model Number : | P10 |
| Certification : | CE,ROHS FCC, UL, ISO |
| Price : | Negotiable，large qty ,better price |
| Payment Terms : | D/P, T/T, Western Union, MoneyGram, L/C /Paypal/cash |
| Supply Ability : | 40000pcs per week |
| Delivery Time : | 5-9working days |
Perimeter large stadium led display screen P10 alluminum movable cabinet 960x960mm soft mask LED module
Feature
● High brightness which is adjustable to meet the needs of various
working environment sufficiently.
● Soft mask and protection pillow to protect both players and the
led screen itself.
● Angle adjustable: Large viewing angle covers the majority of
audience and cameras: Getting noticed, endless commercial value.
● All raw materials go through the strictly testing of high/low
temperature and high humidity, anti-ultraviolet rays,
anti-corrosion.
● IP65 protection grade, durable nature enables the screen to work
in all outdoor weather conditions.

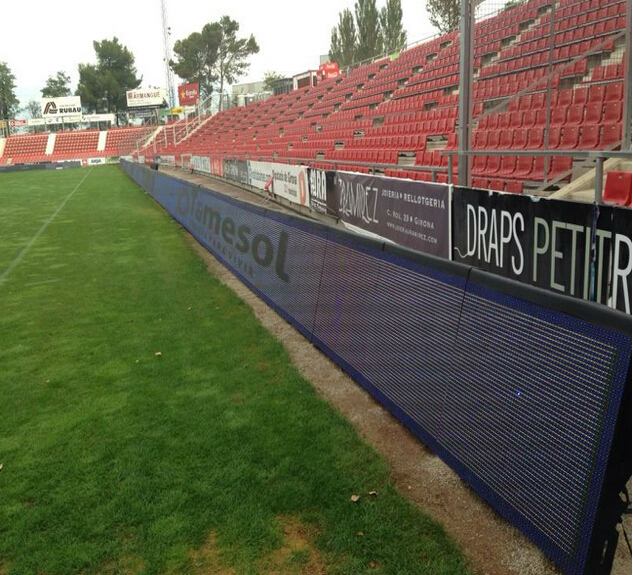

● Applications: Especially applicable for football stadium /
cricket stadium and other sports fields.
| LED Module | |||
| Dimensions (w x h) | 160mmx320mm | Resolution (w x h) | 16 x 32 |
| Pixel pitch | 10mm | Pixel Density | 10000dots/m2 |
| LED Chip | Kinglight | Pixel Configuration | SMD3535 |
| Standard Panel | |||
| Display size (w x h x d)(mm) | 960x 960 X 120 | Module Quantity | 18pcs |
| Physical Resolution (w x h)(dots) | 96x96 | Physical Pixels (dots) | 10000dots/cabinet |
| Weight/Panel (kgs) | 45 | Material | die-casting aluminum |
| Average Power/sqm (watts) | 250 | Max Power/sqm(watts) | 550 |
| Parameter | Value | ||
| Brightness | 8000 cd/m2 | ||
| Viewing Angle | Horizontal 140 deg. Vertical 140 deg. | ||
| Minimum Viewing Distance | >9 meters | ||
| Brightness Control | 256 levels | ||
| Gray Scale | 16 bit | ||
| Refresh Rate | >1920Hz | ||
| Driving Mode | 1/2Scan | ||
| Input Power Frequency | 50 or 60 Hertz | ||
| Input Voltage | 96-242 Volt | ||
| Blind Spot Rate | <1/10,000 | ||
| Lifetime at 50% Brightness | 100,000 hours | ||
| IP Rating | IP43 | ||
| Operating Temperature | -30 ~ +60 OC | ||
| Operating Humidity | 10% ~ 90% | ||
| Control Way | synchronous | ||
| Controller card brand | Nova ,Linsn | ||

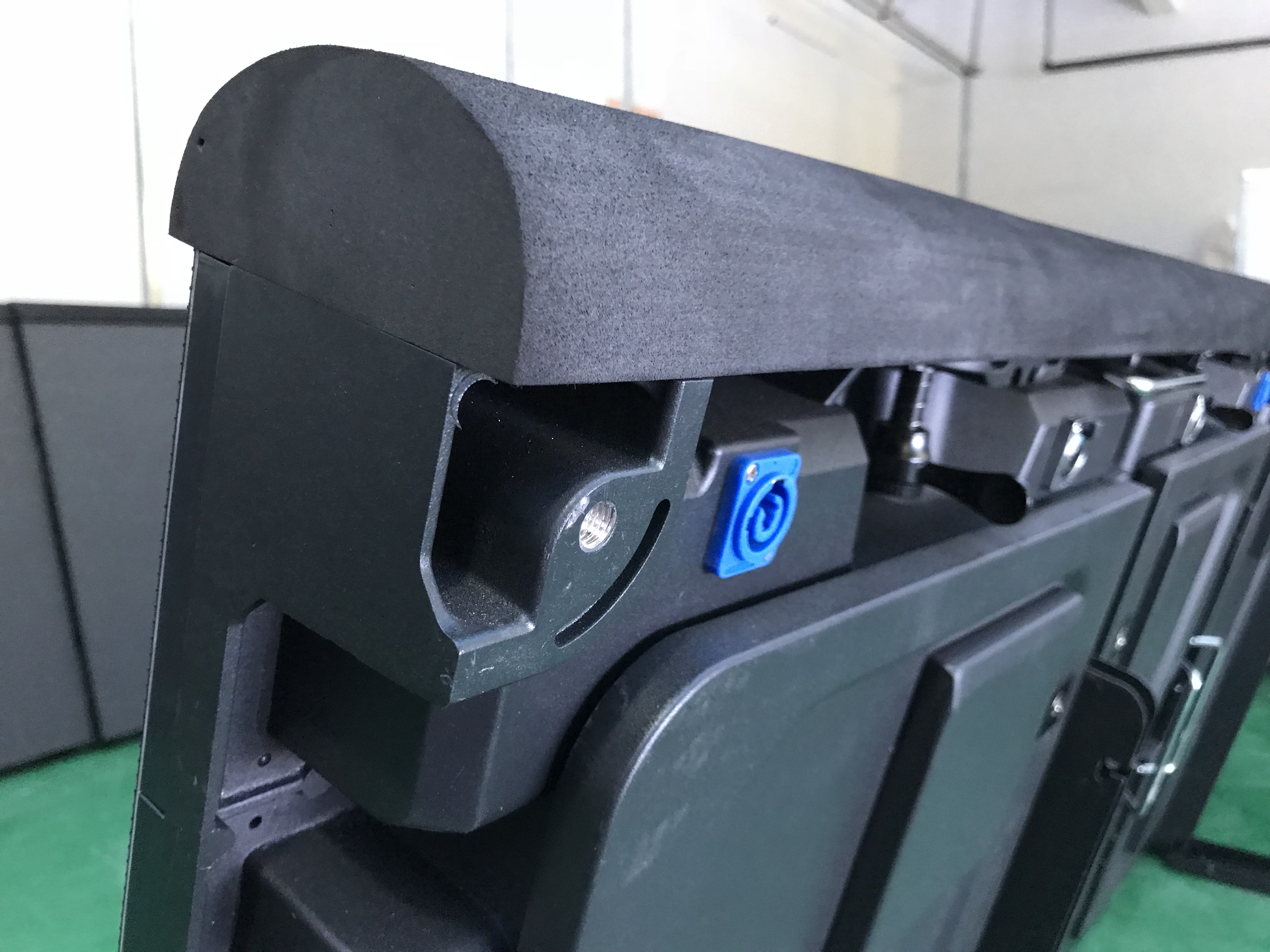

Soft mask
Light weight cabinet & slim
Workshop
Package
Pre-sales Service
1. Customer Training
We provide free training of LED system operation and maintenance. Our purpose is to make clients be able to operate LED system and find solutions to some simple technical problems. We can train 2-3 people for our clients.
2. Basic Training
Three days workshop training of some basic skills of LED Screen System.
1) PC Basic Knowledge
2) Windows Operation System
3) LED Displays Working Principle
4) General System Problems
5) System Daily Maintenance & Safety
3. Site Training
Three days on-site training on purpose to get the Clients to know how to operate the LED screen system, how to deal with general problems. And how to install hardware and software.
1) Software Installation
2) LED Screen Daily Maintenance
3) Software Problem Treatment
Post-sales Service
1. Warranty
1) We provide warranty of all components for 2 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the operation training and maintenance
2) Training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so on.
2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
FAQ
yes, the size is customized,we'll make the size near yours .
The best aspect ratio of LED display are W16:H9 or W4:H3
We will provide drawing of steel structure or hanging truss,then
you can install led display very easy.
Please tell me indoor or outdoor do you need,size of led
display,where will be application of led display.
Normally, can be shipped by sea , by air and express .
You can transfer payment by Bank TT, West union, Paypal or Cash .
More details, pls feel free to contact us !!!
|
|
