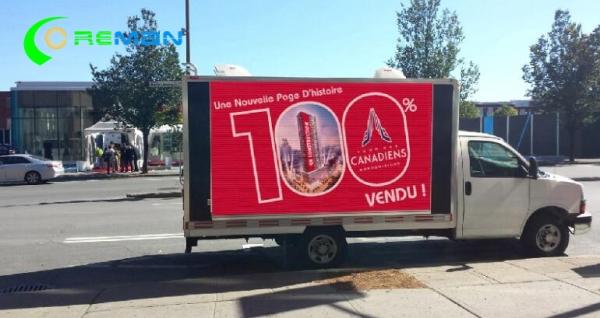

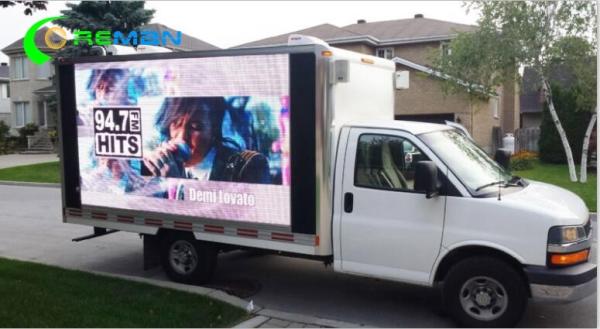

Truck LED display New Outdoor Mobile Advertising full color led screen board P5 P6 P8 P10mm mbi5124 smd 3535
Product Features:
1. Patented Piranha LED and SMD3535 are used for this model,
which guarantee a wide viewing angle(>140° H; >140° W) and a nice flatness appearance.
Brightness>5500CD/SQM.
2. Graceful and concise appearence, <0.1mm discrepancy aluminmum
die-casting moulding
criterion, no deformation; Light weight, slim body; With Protection grade IP65 front and IP65
rear. Suitable for all outdoor working environment.
3. Fast locks at the four sides of the cabinet, easy assembly; And
be piled up and be hoisted.
| Item | Outdoor truck led display series | ||||
| Pixel Pitch: | 6.66mm | 8mm(Super Flux) | 8mm | 10mm(Super Flux) | 10mm |
| Driving Method : | 1/6 | 1/4 | 1/4 | 1/2 | 1/2 |
| LED type : | SMD3535 | DIP5454 | SMD3535 | DIP5454 | SMD3535 |
| Brightness: | ≥5500cd/m 2 | ||||
| Pixel density : | 22545pix/m 2 | 15625pix/m 2 | 15625pix/m 2 | 10000pix/m 2 | 10000pix/m 2 |
| Viewing angle: | 140°H and 120°v | ||||
| Module Size(W*H): | 320*160mm | ||||
| Cabinet Size(W*H): | 640*640*50mm/960X960mm | ||||
| Cabinet weight: | 14.5kg/38KG | ||||
| Cabinet Material: | Aluminum Die-casting/fixed led cabinet | ||||
| Avarage Power Consumption: | 200 W/m 2 | 390 W/m 2 | 390 W/m 2 | 520 W/m 2 | 500 W/m 2 |
| Max Consumption : | 600 W/m 2 | 980W/m 2 | 980W/m | 1250 W/m 2 | 1250 W/m 2 |
| Refresh rate: | ≥1400HZ | ||||
| Color Depth: | 14bit | ||||
| voltage : | 200-240V | ||||
| IP Rrating: | IP65(Front)/65(Rear) | ||||
| Operating temperature : | -20-60 degree | ||||
| Storage temperature: | -40-70 degree | ||||
| Operation humidity: | 10-90% | ||||
| Storage humidity: | 10-90% | ||||
| Life span (hrs): | ≥50000 | ||||
| MTBF (hrs) : | ≥3500 | ||||
| Control system: | Linsn/Nova | ||||
| Compliant standard: | N/A | CE-EMC | CCC,CE,TUV,RoHS | ||
|
