| Brand Name : | Coreman |
| Model Number : | CM-TLC-FS |
| Certification : | CE,ROHS,SGS,FCC |
| Price : | 100-890USD per sqm |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability : | 5000sqm per month |
| Delivery Time : | 3-12days |

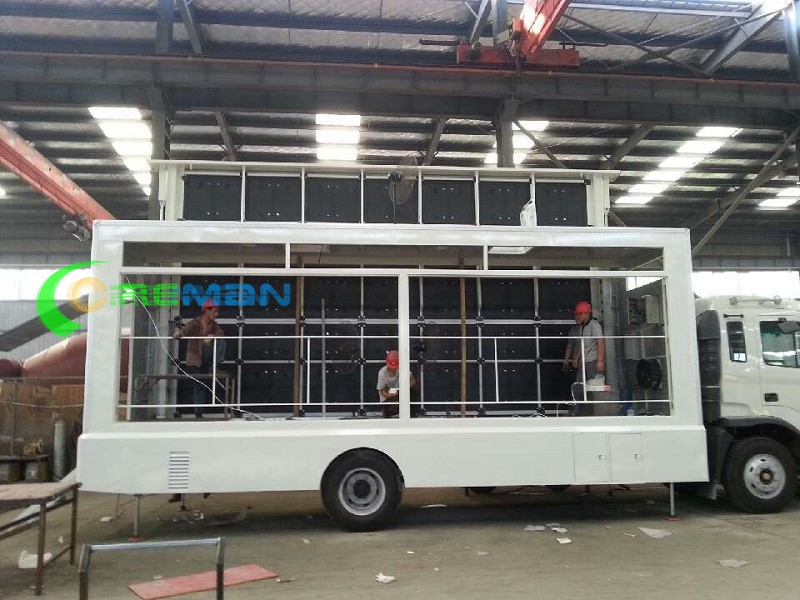

Static PH10mm 1 / 4 Scan 1R1G1B 16bit RGB SMD Digital Truck Mounted LED Mobile Displays Screen P5 P6 outdoor IP65
Product Features:
1. Patented Piranha LED and SMD3535 are used for this model,
which guarantee a wide viewing angle(>140° H; >140° W) and a nice flatness appearance.
Brightness>5500CD/SQM.
2. Graceful and concise appearence, <0.1mm discrepancy aluminmum
die-casting moulding
criterion, no deformation; Light weight, slim body; With Protection grade IP65 front and IP65
rear. Suitable for all outdoor working environment.
3. Fast locks at the four sides of the cabinet, easy assembly; And
be piled up and be hoisted.
1. Competitive Price
We are middle-sized Chinese local factory, total 5 floors.
The first floor is for display testing room.
The second floor is SMT machine room.
The Third floor is for indoor led module
The Forth floor is for outdoor led module.
The fifth floor is for office
Besides, we control our cost very well and don't have huge management cost like top companies,
so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top LED
display factory since 2009, we have very close and strategic
relationship with the raw material providers, which support the
stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we
control all steps, which are the guarantee of the quality and
reliability.
All module test 2 days and all whole display test 3 days.
4. Professional services
We have 5-6 in the LED display industry more than 12 years of professional and technical personnel,
hope to be able to better provide customers with the best solution.
Let customers use the rest assured.
| Item | Outdoor truck led display series | ||||
| Pixel Pitch: | 6.66mm | 8mm(Super Flux) | 8mm | 10mm(Super Flux) | 10mm |
| Driving Method : | 1/6 | 1/4 | 1/4 | 1/2 | 1/2 |
| LED type : | SMD3535 | DIP5454 | SMD3535 | DIP5454 | SMD3535 |
| Brightness: | ≥5500cd/m 2 | ||||
| Pixel density : | 22545pix/m 2 | 15625pix/m 2 | 15625pix/m 2 | 10000pix/m 2 | 10000pix/m 2 |
| Viewing angle: | 140°H and 120°v | ||||
| Module Size(W*H): | 320*160mm | ||||
| Cabinet Size(W*H): | 640*640*50mm/960X960mm | ||||
| Cabinet weight: | 14.5kg/38KG | ||||
| Cabinet Material: | Aluminum Die-casting/fixed led cabinet | ||||
| Avarage Power Consumption: | 200 W/m 2 | 390 W/m 2 | 390 W/m 2 | 520 W/m 2 | 500 W/m 2 |
| Max Consumption : | 600 W/m 2 | 980W/m 2 | 980W/m | 1250 W/m 2 | 1250 W/m 2 |
| Refresh rate: | ≥1400HZ | ||||
| Color Depth: | 14bit | ||||
| voltage : | 200-240V | ||||
| IP Rrating: | IP65(Front)/65(Rear) | ||||
| Operating temperature : | -20-60 degree | ||||
| Storage temperature: | -40-70 degree | ||||
| Operation humidity: | 10-90% | ||||
| Storage humidity: | 10-90% | ||||
| Life span (hrs): | ≥50000 | ||||
| MTBF (hrs) : | ≥3500 | ||||
| Control system: | Linsn/Nova | ||||
| Compliant standard: | N/A | CE-EMC | CCC,CE,TUV,RoHS | ||
|
