| Brand Name : | Coreman |
| Model Number : | CM-TGM-FS |
| Certification : | CE,ROHS,SGS,FCC |
| Price : | 280-1260USD per sqm |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability : | 5000sqm per month |
| Delivery Time : | 3-12days |
Flexible Transparent Led Display glass video wall full color indoor led screen SMD
Model | P3.75-6.67 | P3.75-8 | P5:-.67 | P5-8 | P7.5-8 | P10 | P16 | P20 |
Pixel Pitch | 3.75 x 6.67mm | 3.75 x 8mm | 5 x 6.67mm | 5 x 8mm | 7.5 x 8mm | 10mm | 16mm | 20mm |
Scan Mode | 1/8 | 1/6 | 1/4 | 1/3 | 1 | |||
Pixel Density | 40000dots/㎡ | 33333dots/㎡ | 30000dots/㎡ | 25000dots/㎡ | 16667dots/㎡ | 10000dots/㎡ | 3906dots/㎡ | 2500dots/㎡ |
Pixel Configuration | 1921 | 3528 | ||||||
Module Resolution | 128 x 48 | 128 x 40 | 96 x 48 | 96 x 40 | 64 x 40 | 48 x 32 | 30 x 20 | 20 x 16 |
Module Size | 480 x 320mm / 960 x 320mm | 480 x 320mm | ||||||
Cabinet Resolution | 256 x 96 | 256 x 80 | 192 x 96 | 192 x 80 | 128 x 80 | 96 x 64 | 60 x 40 | 40 x 32 |
Cabinet Size | 964 x 640mm / 1920 x 640mm | 960 x 640 mm | ||||||
Brightness | 5500-6000CD/㎡ | |||||||
Refresh Rate | 1920Hz | |||||||
Packing | Plywood Case / Flight Case | |||||||
Transparency Rate | 72% | 75% | 72% | 75% | 75% | 80% | 83% | 86% |
Weight per ㎡ | 11KG | 10.2KG | 10KG | 9.5KG | 9KG | 8KG | 7.2KG | 6.5KG |
Viewing Angle | 140°(H) / 140°(V) | |||||||
Power Consumptionper ㎡ | Max 690W, Min 207W | Max 670W, Min 201W | Max 696W, Min209W | Max 670W, Min203W | Max 670W, Min 204W | Max 650W, Min 195W | Max 650W, Min 218W | Max 650W, Min 218W |
Signal Input | HUB-BLP-14C | HUB-BLP-64X1-V1.0 | HUB-BLP-V3.0 | |||||
Simple and elegant------Simple structure,use less cables,the cables
of power supply and signal are be intergrated.
More Intelligent------45 Degree Oblique border design,Shaped assembly
arc splicing, Minimum assembly Angle 90 degree More flexible to
use.
Operating long time------Low consumption of electricity to increase the
life time of LEDS.
Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top LED
display factory
since 2009, we have very close and strategic
relationship with the raw material providers, which support the stable quality o
f our products.
Quality Control
From raw materials to finished product, from design to produce, we
control all
steps, which are the guarantee of the quality and reliability.
All module test 2 days and all whole display test 3 days.

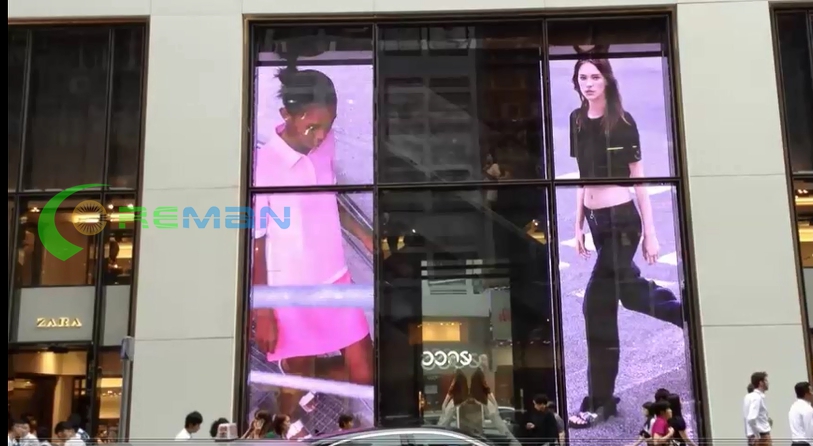

1.Glass wall transparency led display:
2.LED mesh curtain transparency led display:
|
|
