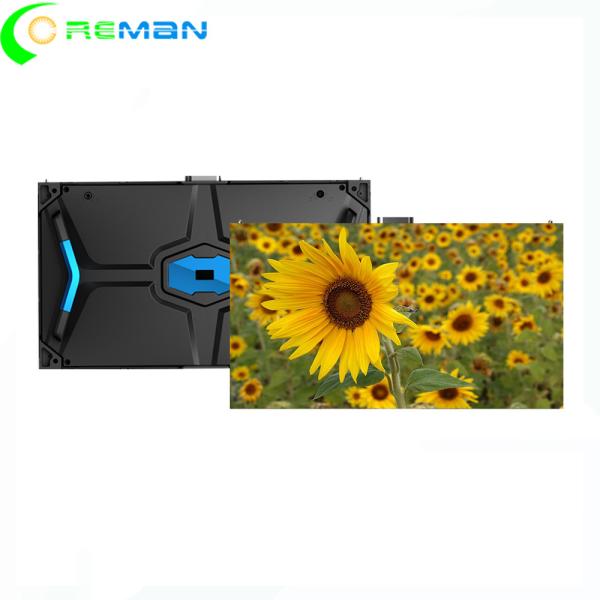

P1.25 Indoor HD led display 600 x 338 led cabinet HDMI DVI VGA input HD led video wall
P1.25 HD rental led display led video wall feature:
1.Automatic calibration function, once a module is replaced, the
calibration data will be upgrade automatically
2.16 Bit or 24 bit Grey Grade Processing, the color transition will
be more natural.
3.Ultra high resolution, having good visual effect even staying
very close to the led screen.
4.Super wide viewing angle, the viewing angle is 160 degree on
horizontal and vertical.
5.Front access design on cabinet, cabinets coming with fast lock,
can install two cabinet within
6.provides improved heat dissipation and faster, easier
single-person handling during installation.
7.Enegry saving, high refresh rate under low brightness and grey
level.
8.Efficient and Reliable Remote Power.Remote Power Supply (RPS)
that takes heat, depth, noise, weight, service points and
electrical outlets away from the video wall and into a convenient.
9.Use presets for recalling video wall windowing layouts to quickly
configure content.
What materials we use for the product?
1. Use high quality materials, Nicha Cree Silan Opto etc are
optional.
2. Use good quality and stable components , like MBI, Samsung etc
3. Encapsulated LEDs from Nationstar , kinglight, KN-light are
optional.
4. Famous power supply, Meanwell, Delta ,megmeet etc power supply
for high-end market customer.
What we can do ?
1. Custom or standard design led module or cabinet to meet
different customer requirement.
2. Certified product ,CCC, FCC CE -EMC, CE-LVD, Rohs,UL, CAS,SASO,
etc for differen country and market.
3. Low price on the shipping ,fast delivery to save as much time as
we can for customer.
4. 2-7 warranty according to customer situation and request.
What service we can provide
1. We will answer your inquiry with 24 hours via e-mail/ phone
,working 24 hours / 7 days.
2. We can provide the installation CAD drawing or struction for
customer as negotiation.
3. We can send engineer to customer side to install the led display
as cutomer request
4. We will provide maintenance for a lifetime and charge for the
raw materials only.
Specification:
| LED chip | SMD1010 |
| LED Module | 1.25mm |
| Pixel Density (dots /m2 ) | 640000 |
| Module Resolution(W x H) | 160 x 135 |
| Module Size ( mm ) | 200(W) x 168.75(H) |
| Module Maximum Power Consumption (W) | 25 |
| Module of Cabinet (W x H) | 3 x 2 |
| Cabinet Resolution (W x H) | 480 x 270 |
| Cabinet Size ( mm ) | 600(W) x 337.5(H) x 80(D) |
| Cabinet Area ( m2 ) | 0.2025 |
| Cabinet Weight ( kg ) | 9.9 |
| Cabinet Flatness ( mm ) | ≤0.2 |
| Maintain Style | Pre maintenance |
| Cabinet Flatness(mm) | ≤0.1mm |
| Cabinet Material | die-cast aluminum |
| singel pix brightness corretion | have |
| singel pix chroma corretion | have |
| white balance brightness ( nits ) | 200～1000 Adjustable |
| Color Temperature ( K ) | 3200～9300 Adjustable |
| viewing angle (HorizontalVerticla) | 160/160 |
| Light Pixel Centerline Spacing Difference | <3% |
| Brightness/Color Uniformity | ≥97% |
| Contrast Ratio | 5000:1 |
| Max Power consumption (W/m2) | 800 |
| Avg Power Consumption (W/m2) | 250 |
| Power supply requirement | AC90～264V,frequency 47～63(Hz) |
| Frame Frequenc y (Hz ) | 50&60 |
| Driving Mode | Constant current drive,1/30S |
| Grey Scale | 65536 |
| Refresh Rate ( Hz ) | Max imum 3840HzHz |
| Color Processing Level | 16bit |
| Video Effect | 2KHD , 4K/8K Ultra Picture |
| Working Temperature/Humidity ( °C/RH ) | -20 ～ 60 / 10% ～ 90%RH (No moisture condensation ) |
| Storage Temperature/Humidity ( °C/RH ) | -40 ～ 65 / 10% ～ 95%RH (No moisture condensation ) |
| Certificate Standard | FCC , CCC , TUV-CE |
Other product available
| Indoor led display | ||||
| Pixel pitch | Module Resolution(dots) | Module Size | Cabinet Resolution(dots) | Cabinet size |
| P0.9375 | 160 x 180 | 150mm x 168.75mm | 640 x 360 | 600mm x 337.5mm |
| P1.25 | 160 x 135 | 200mm x 168.75mm | 480 x 270 | 600mm x 337.5mm |
| P1.33 | 224 x 126 | 300mm x 168.75mm | 448 x 252 | 600mm x 337.5mm |
| P1.5625 | 128 x 96 /128 x 108 | 200mm x 150mm / 200mm x 168.75mm | 256 x 192 / 384 x 216 | 400mm x 300mm / 600mm x 337.5mm |
| P1.667 | 120 x 90 | 200mm x 150mm | 240 x 180 | 400mm x 300mm |
| P1.875 | 64 x 64 / 160 x 90 | 120mm x 120mm / 300mm ×168.75mm | 256 x 256 / 320 x 180 | 480mm x 480mm / 600mm x 337.5mm |
| P1.923 | 104 x 78 | 200mm x 150mm | 208 x 156 | 400mm x 300mm |
| P2 | 64 x 64 | 128mm x 128mm | 256 x 256 | 512mm x 512mm |
| P2.5 | 64 x 64 | 160mm x 160mm | 192 x 192/256 x 256 | 480mm x 480mm /640mm x 640mm |
| P3 | 64 x 64 | 192mm x 192mm | 192 x 192 | 576mm x 576mm |
| P4 | 64 x 32 | 256mm x 128mm | 128 x 128 | 512mm x 512mm |
| P5 | 64 x 32 | 320mm x 160mm | 128 x 128 / 192 x 192 | 640mm x 640mm / 960mm x 960mm |
| P6 | 32 x 32 | 192mm x 192mm | 96 x 96 | 576mm x 576mm |
| P10 | 32 x 16 | 320mm x 160mm | 64 x 64 / 96 x 96 | 640mm x 640mm / 960mm x 960mm |
| P2.97 | 84 x 84 | 250mm x 250mm | 168 x 168 / 168 x 336 | 500mm x 500mm / 500mm x 1000mm |
| P3.47 | 72 x 72 | 250mm x 250mm | 174 x 174 / 174 x 348 | 500mm x 500mm / 500mm x 1000mm |
| P3.91 | 64 x 64 | 250mm x 250mm | 128 x 128 / 128 x 256 | 500mm x 500mm / 500mm x 1000mm |
| P4.81 | 52 x 52 | 250mm x 250mm | 104 x 104 /104 x 208 | 500mm x 500mm / 500mm x 1000mm |
| Outdoor led display | ||||
| Pi x el pitch | Module Resolution(dots) | Module Size | Cabinet Resolution (dots) | Cabinet size |
| P3 | 64 x 64 | 192mm x 192mm | 192 x 192 | 576mm x 576mm |
| P3.91 | 64 x 64 | 250mm x 250mm | 128 x 128 / 128 x 256 | 500mm x 500mm / 500mm x 1000mm |
| P4.81 | 52 x 52 | 250mm x 250mm | 104 x 104 /104 x 208 | 500mm x 500mm / 500mm x 1000mm |
| P5.95 | 42 x 42 | 250mm x 250mm | 84 x 84 / 84 x 168 | 500mm x 500mm / 500mm x 1000mm |
| P4 | 64 x 32 | 256mm x 128mm | 128 x 128 | 512mm x 512mm |
| P5 | 64 x 32 | 320mm x 160mm | 128 x 128 / 192 x 192 | 640mm x 640mm / 960mm x 960mm |
| P6 | 32 x 32 | 192mm x 192mm | 96 x 96 | 576mm x 576mm |
| P6.67 | 48 x 24 | 320mm x 160mm | 96 x 96 / 144 x 144 | 640mm x 640mm / 960mm x 960mm |
| P10 | 32 x 16 | 320mm x 160mm | 64 x 64 / 96 x 96 | 640mm x 640mm / 960mm x 960mm |
| P8 | 32 x 16 | 256mm x 128mm | 64 x 64 | 512mm x 512mm |
| P8 | 40 x 20 | 320mm x 160mm | 80 x 80 | 640mm x 640mm |
| P10 | 32 x 16 | 320mm x 160mm | 64 x 64 / 96 x 96 | 640mm x 640mm / 960mm x 960mm |
Connection diagram
(Video processor is not must, it depends on the size of the display)
Application:
The led screen can be used as the indoor and outdoor stage LED display, dance floor, stadium LED display, sky backdrop curtain, fixing advertising LED display, showcase, Shopping center,stage , concert background, festival celebration , wedding, exhibition, meeting room, CCTV center ,airport , stadium games like football, basketball etc.etc. And it would be more convenient and fast .
