| Brand Name : | COREMAN |
| Model Number : | CM-DRC-RS1 |
| Certification : | CE,ROHS,SGS,FCC,UL,etc. |
| Price : | 103-855USD/set |
| Payment Terms : | D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability : | 5000 sqm one month |
| Delivery Time : | 3-12days |

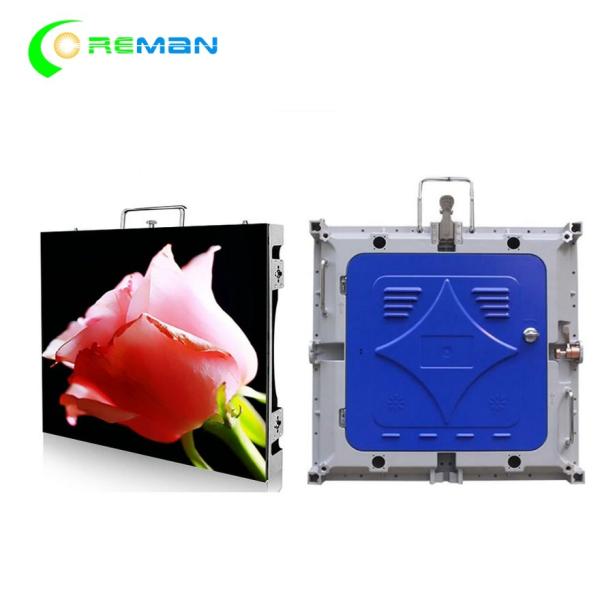

P4 P8 rental led screen cabinet die casting aluminium full color video wall outdoor 512x512
------------------LED display is a flat panel display, which uses an array of light-emitting
diodes as pixels for a videodisplay. ...
LED displays are capable of providing general illumination in addition to visual display,
as when used for stage lighting or other decorative (as opposed to informational) purposes.
(1) LED unit module board &IC
The quality of LED module directly affects displaying effect.
LED module consists of LED lamps, driven IC and PCB circuit board.
IC: MBI 5124,2037 2038s 5153 2053
LED encapsulation : Nation Star+kinglight+hongsheng

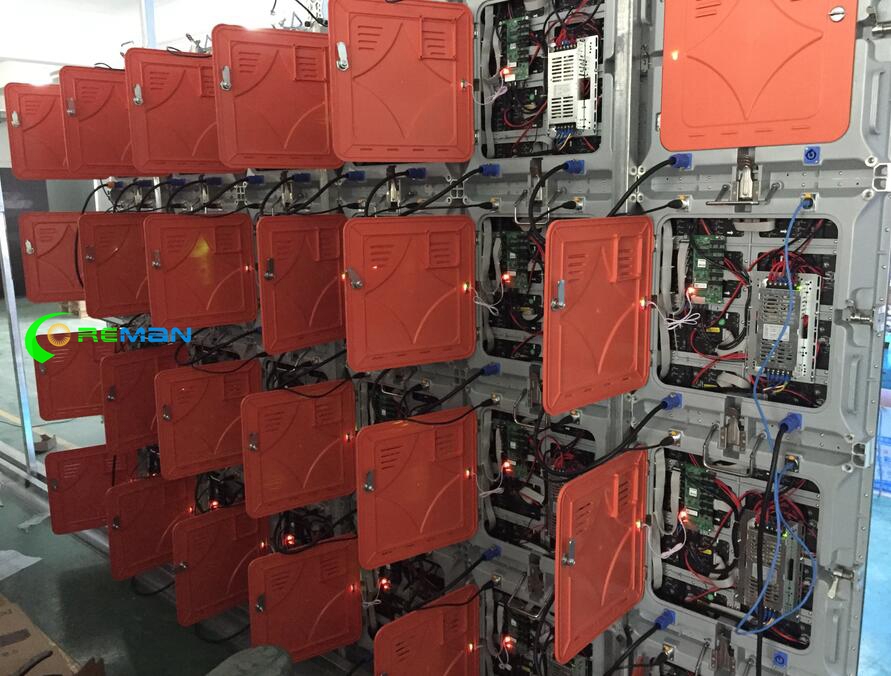

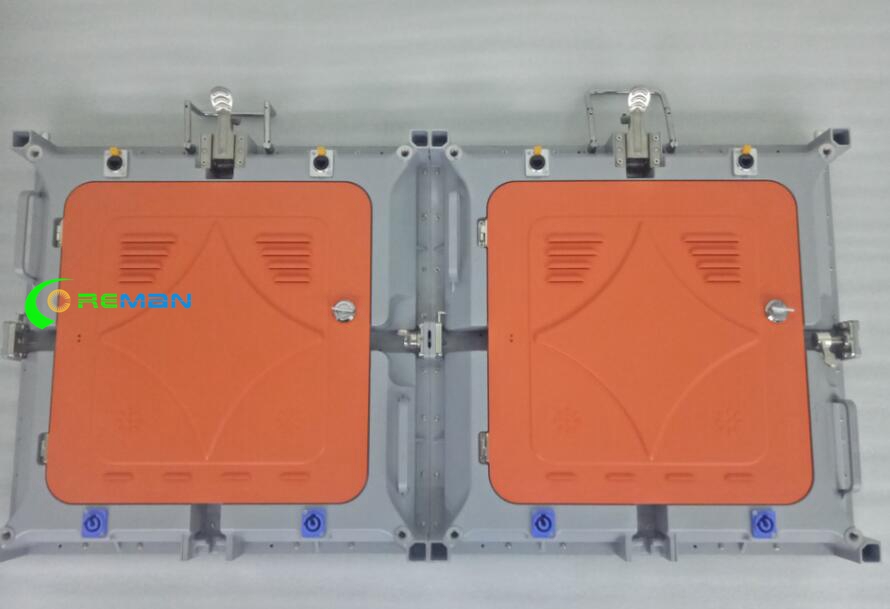

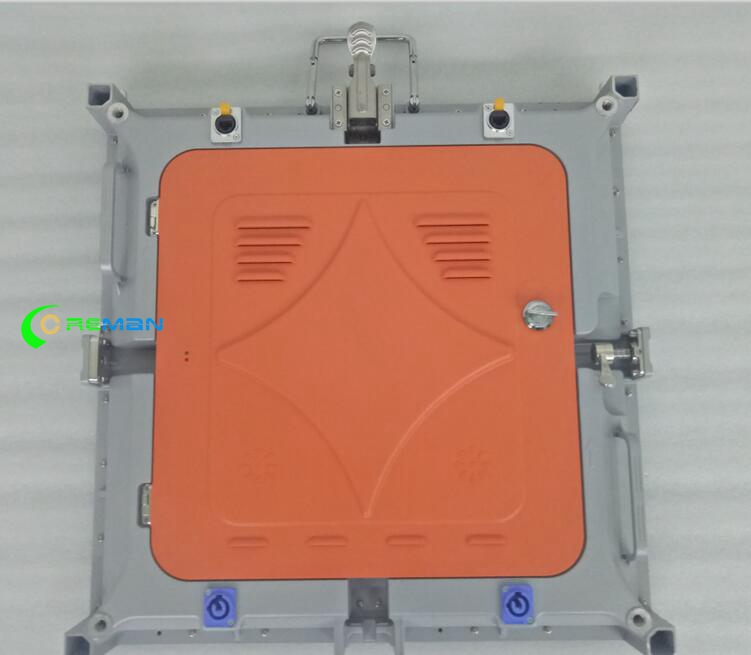

(2) Frame or Cabinet
Aluminum Frame or steel cabinet is used to hold up module
boards/panels.
(3) Power supply
Usually use switch power supply, the brand can be : G-Energy ; C.L.
; Meanwell!
Input 220V / 110V and Output 5V DC
(4) Control Card
Novastar or Linsn High refresh Control Card
(5) Cables
Data cable, transmitting cable and power cable
Data cable is used to connect control card with LED modules.
Transmitting cable is used to connect control card with computer.
Power cable is used to connect power supply with LED module and
control card.
1. Application
Advertising LED display , shopping mall LED display for logo
showing ,
bank &stock exchange LED display for rates showing ,
train & bus station , airport ,school message board, telecommunication
LED Screen system for information showing and instruction , Stage
performance and so on .
2. Feature
Excellent visual effect, clear and exquisite, Good flatness, good
viewing angle,
vivid mixed colors, easy to assembly, install and transport
with simple packing and convenient use, excellent heat-sinking,
high stability ,no scrapped lamp .
Warranty terms:
(1) We provide warranty of all components for 24 months. During
this time,
we will replace or repair our goods for free if there is something
wrong with them.
(2) We will provide maintenance for a lifetime and charge for the
raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the
operation
training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the
raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or
other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so
on.
(2) We can also provide all kinds of certification such as CE, RoHS
and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free
and some
other expert suggestion.
(2) We will send our engineers to your place if we are expected
after our
negotiation.
6. Additional Service
We provide you the forwarding information, and some other
information
such as flight case, structure information for your reference for
free.
Indoor fixed LED display: P2 P2.5, P3, P4, P5, P6, P7.62,P8, P10
Indoor rental LED display: P3, P4, P5, P6, P10, P3.91, P4.81, P6.25
,
Outdoor fixed LED display: P4, P5, P6, P7.62, P8, P10
Outdoor rental LED display: P4, P5, P6, P8, P10, P6.667, P3.91,
P4.81, P5.95, P6.25
Small pitch LED display: P1.667, P1.875, P1.904, P1.923, P2.0, P2.5
Front service maintenance LED screen: P10, P16, P20
Stadium perimeter LED screen: P8, P10, P16
| Pixel pitch | 3.91mm | 4mm |
| Module size | 250X250mm | 256X128mm |
| Resolution | 64x64 | 64x32dots |
| Density of pixel | 65536dots/m2 | 62500dots/m2 |
| LED Size | SMD1921 | SMD1921 |
| Pixel configuration | 1R1G1B 3in1 | 1R1G1B |
| Best viewing distance | ≥4m | ≥4m |
| Horizontal viewing angle | 140º | 140º |
| Viewing angle | 140º | 140º |
| Driving method | 1/13 scan | 1/8 scan |
| Brightness | 6000cd/sqm | 6500cd/m2 |
| Refresh rate | 960-1920Hz(Max 3840Hz) | 960-1920Hz(Max 3840Hz) |
| IP grade | IP40 65 | IP65 |
| Max power consumption | 30W/pcs | 38W/pcs |
| Avg power consumption | 18W/pcs | 20W/pcs |
| Input voltage | DC5VAC110V/220V±10% | AC110V/220V±10% DC5V |
| Storage temperature | —40°C~65°C | —40°C~65°C |
| Working temperature | —20°C~55°C | —20°C~55°C |
| MTBF | ≥10,000 hours | ≥10,000 hours |
| Life span | ≥100,000hours | ≥100,000hours |
| Control system | Nova/Linsn/Colorlight/DBstar etc | Nova/Linsn/Colorlight/DBstar etc |
| Specification might be slightly different based on different components | ||
